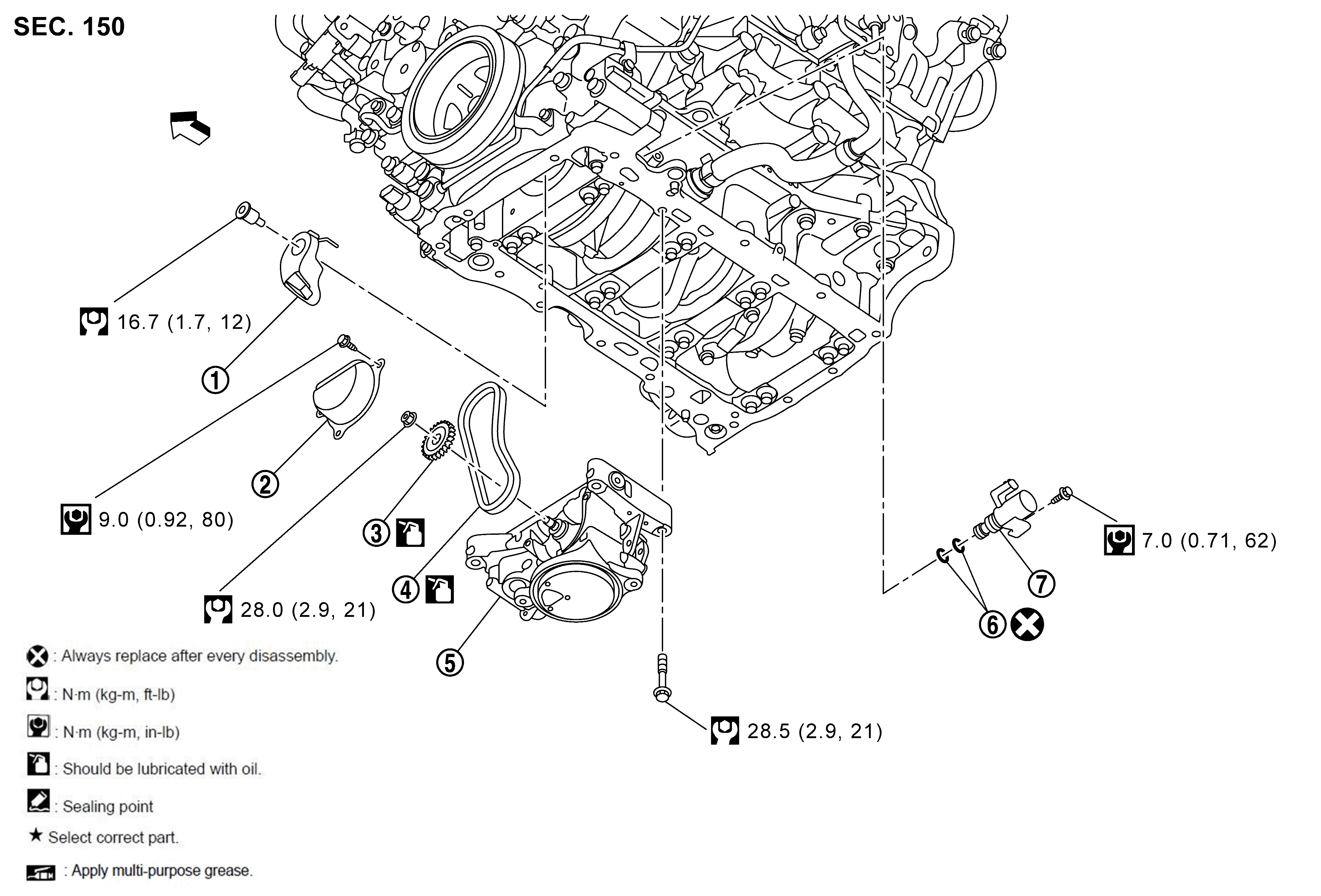

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Oil pump drive chain tensioner
|
|
Cover
|
|
Oil pump sprocket
|
|
|
Oil pump drive chain
|
|
Oil pump assembly
|
|
O-ring
|
|
|
Engine oil pressure control solenoid valve
|
|
|
: Engine front
|
|
|
: Always replace after every disassembly.
|
|
|
: N.m (kg-m, ft-lb)
|
|
|
: N.m (kg-m, in-lb)
|
|
|
: Should be lubricated with oil.
|
