Engine Lubrication System Schematic

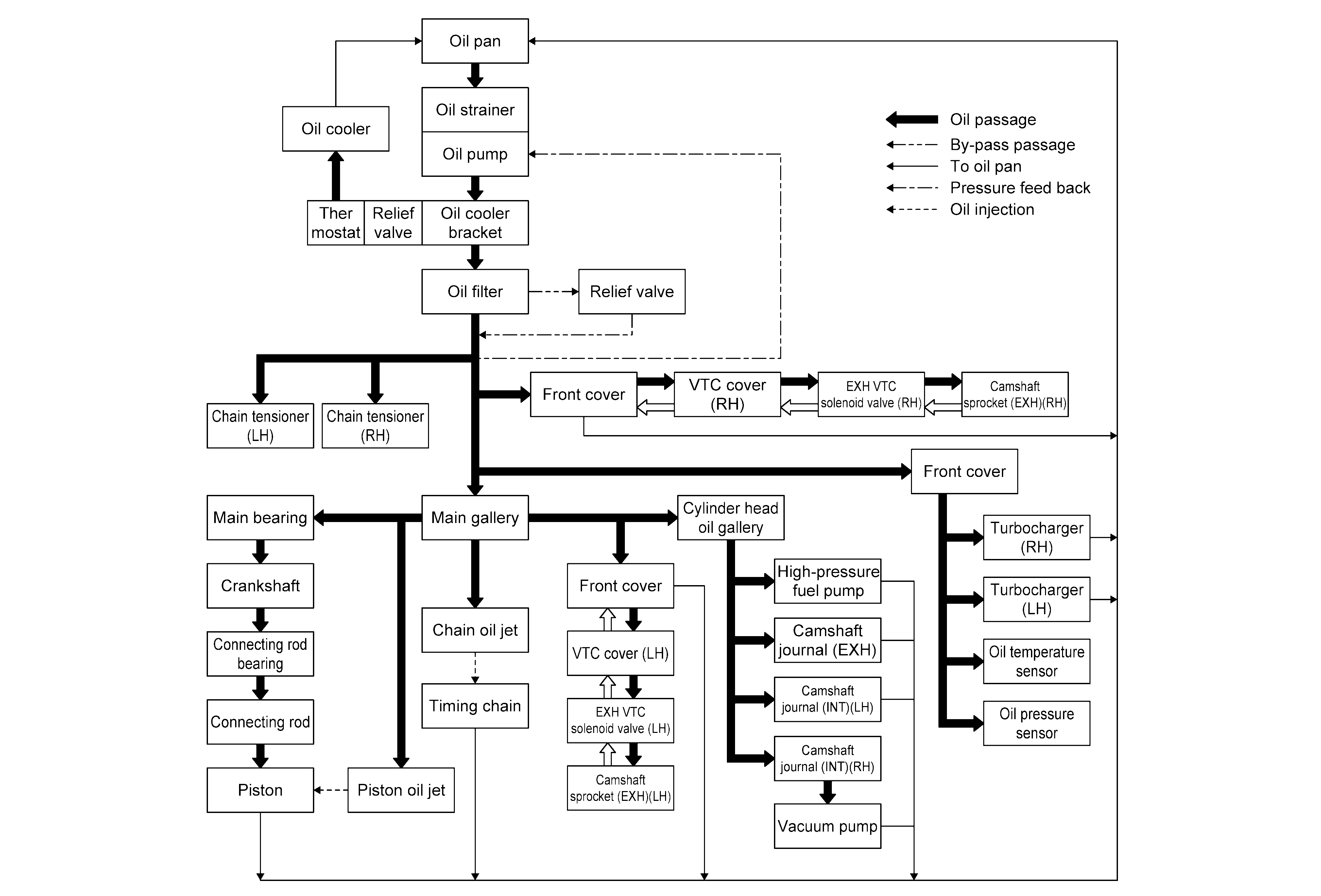

Fig 1: ENGINE OIL COOLER AIR COOLING TYPE
GNSJSBIA9971GB-971Courtesy of NISSAN NORTH AMERICA, INC.

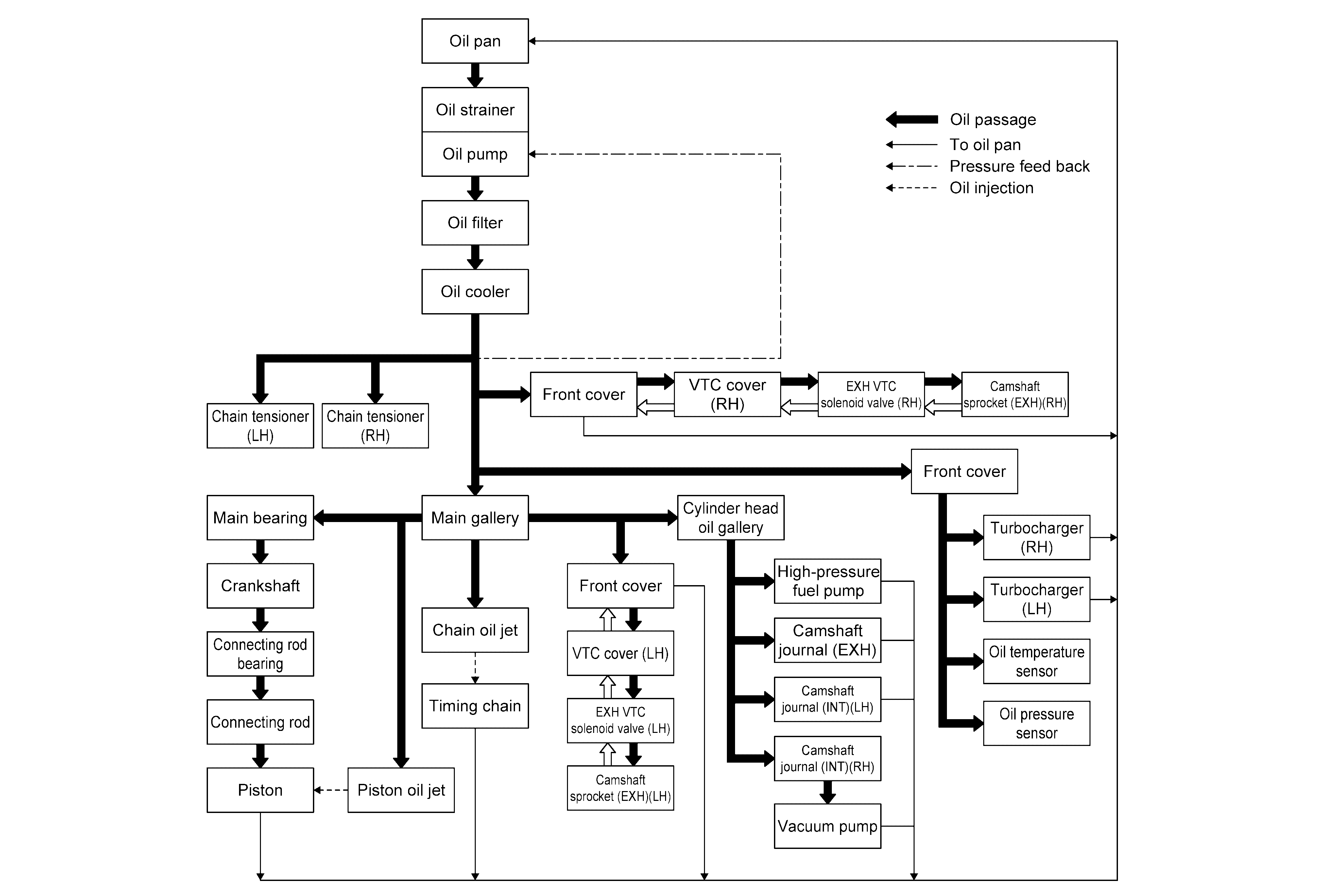

Fig 2: ENGINE OIL COOLER WATER COOLING TYPE
GNSJSBIB0399GB-399Courtesy of NISSAN NORTH AMERICA, INC.
