Exploded View

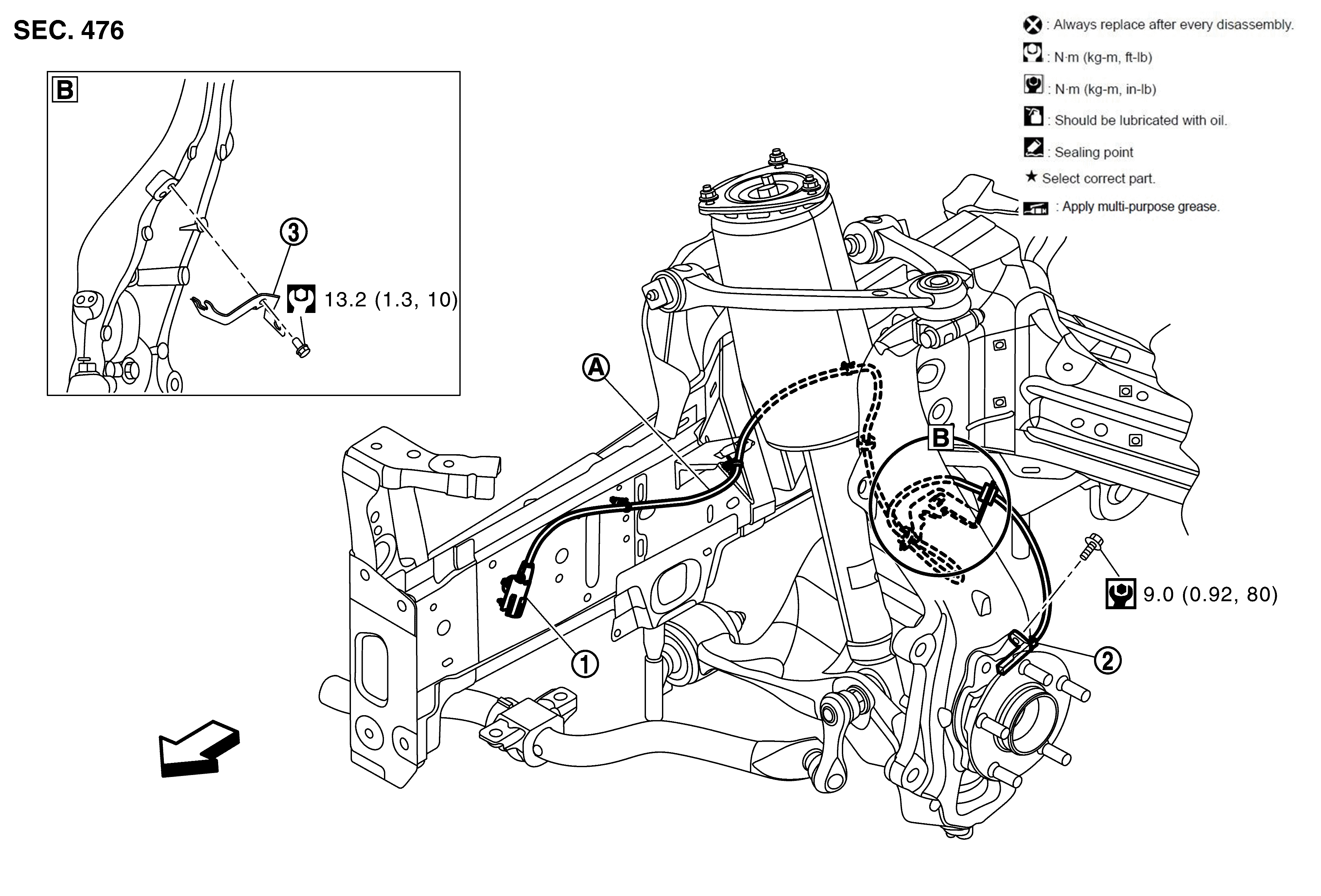

Fig 1: Front Wheel Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Front LH wheel sensor harness connector		Front LH wheel sensor		Bracket
	Identification line

: Vehicle front
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)

NOTE: Front RH wheel sensor is symmetrically opposite of LH.
