Circuit Diagram

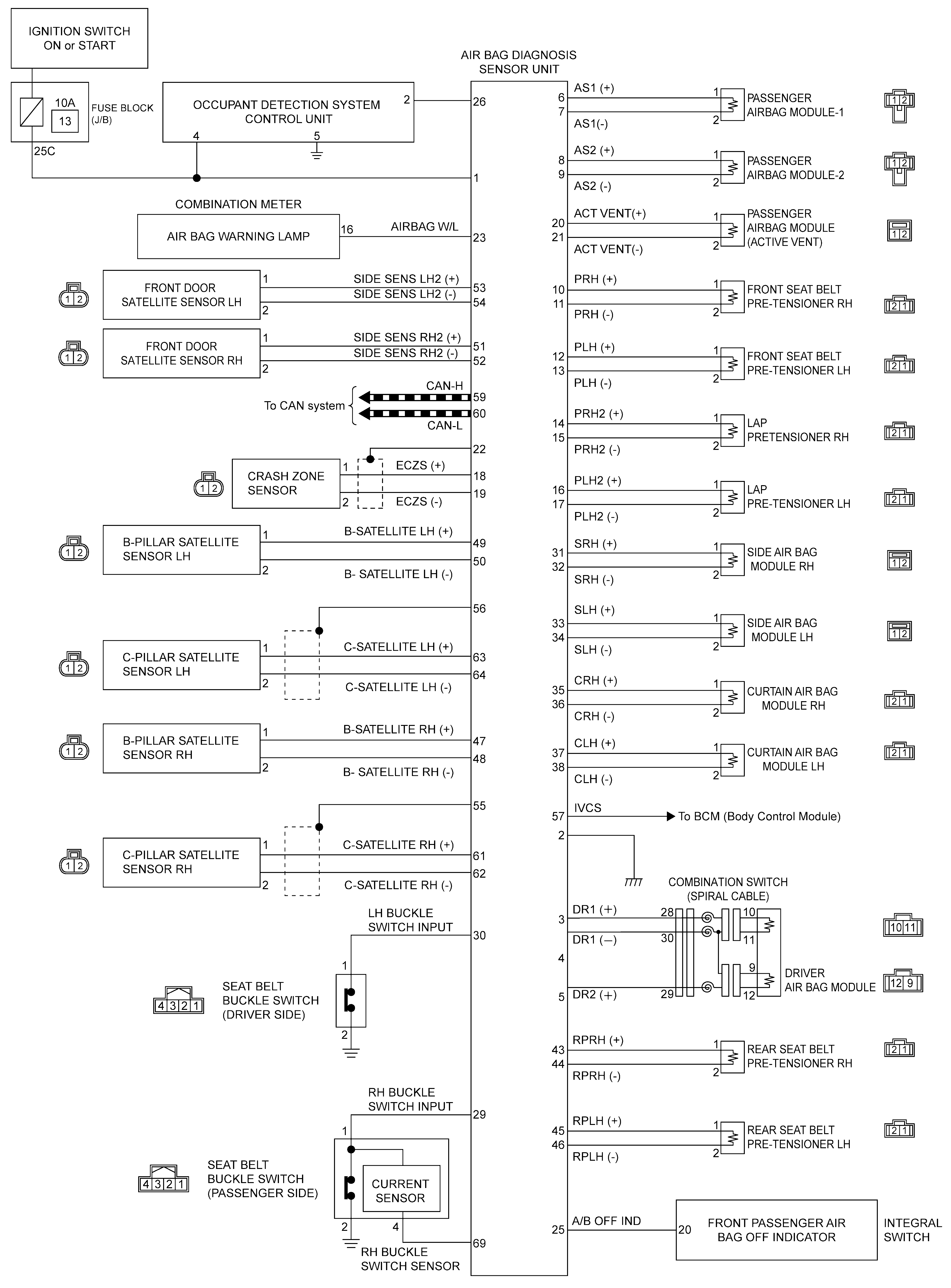

GNSILL0219849-849

Courtesy of NISSAN NORTH AMERICA, INC.

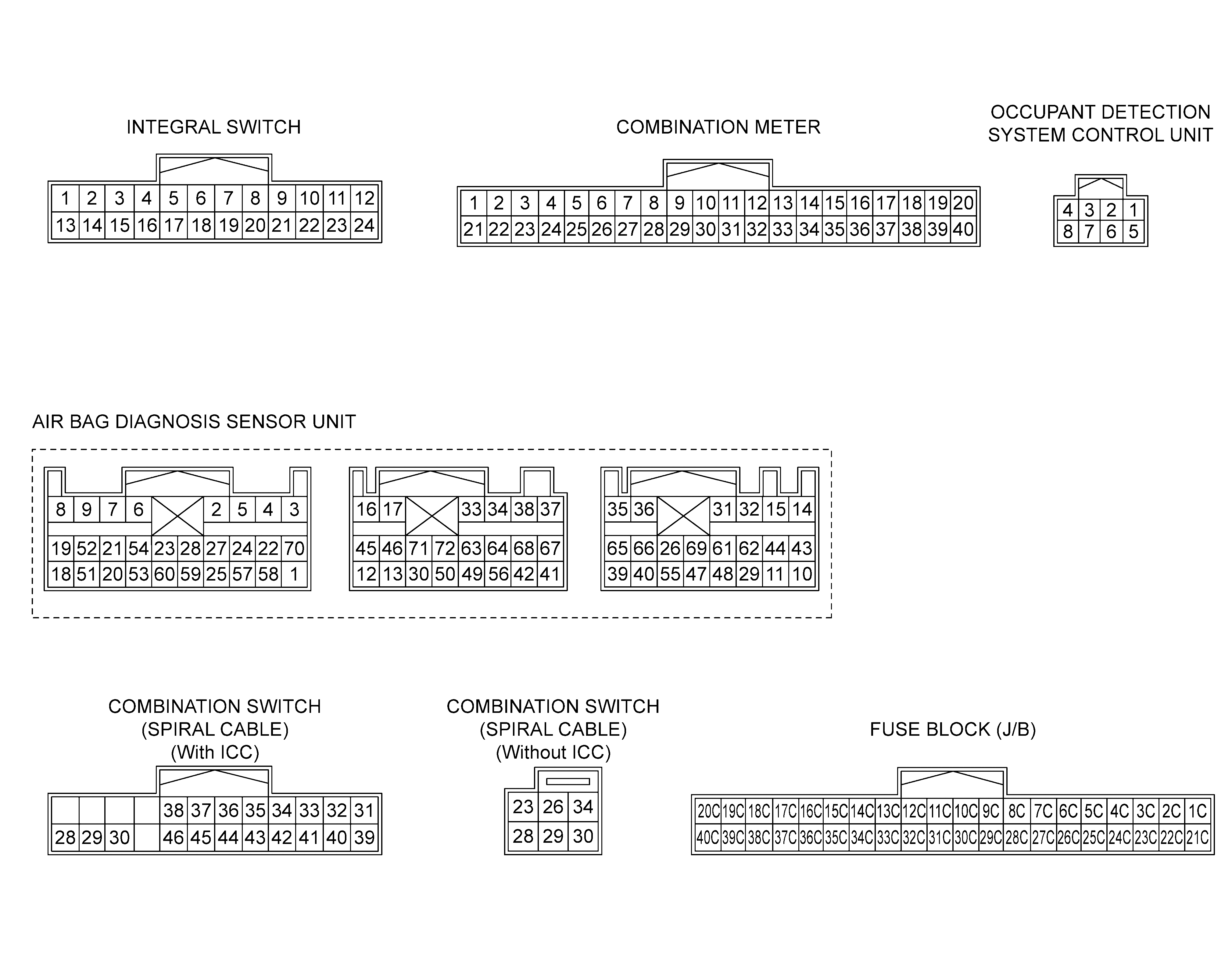

GNSJMHIA3651GB-651

Courtesy of NISSAN NORTH AMERICA, INC.
