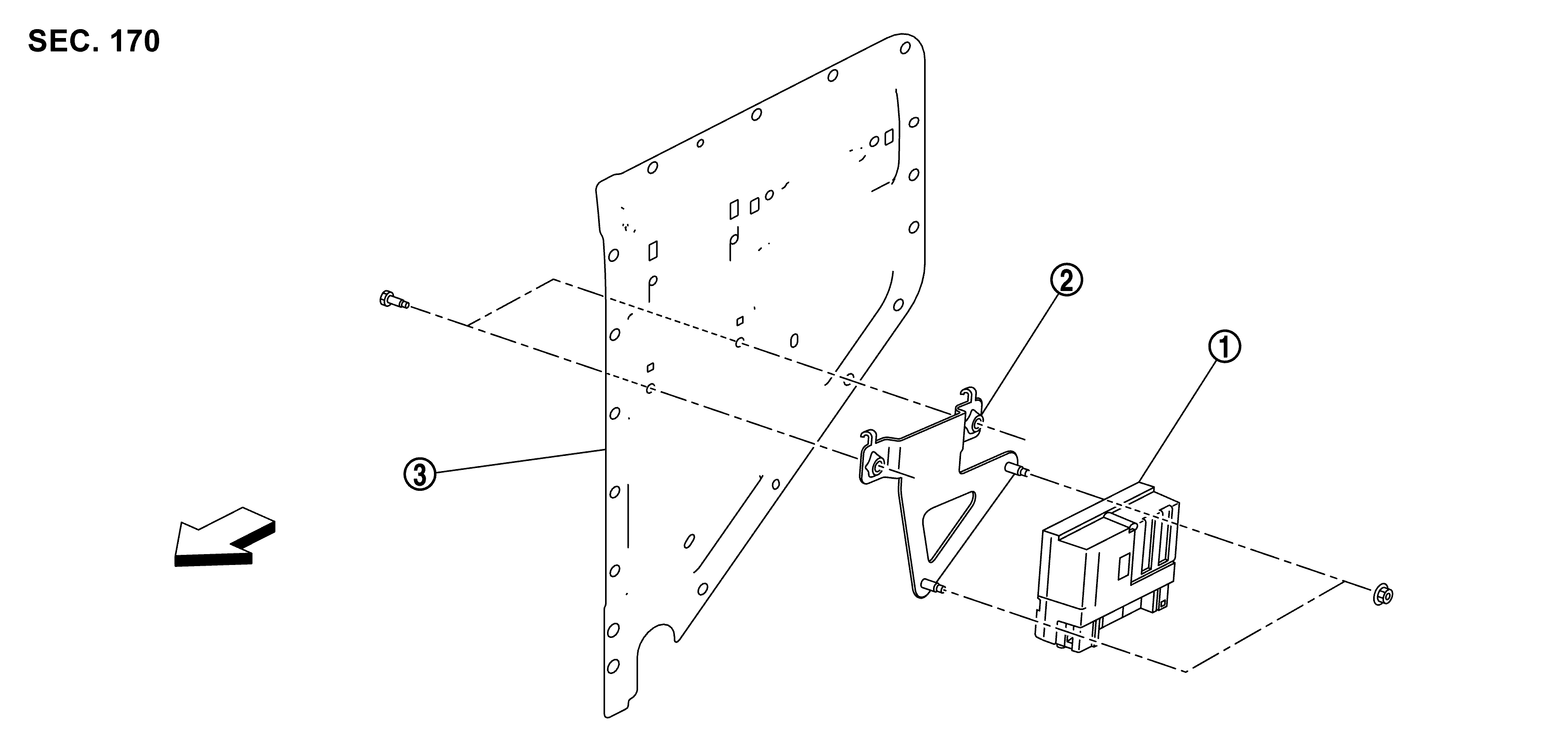

Exploded View

GNSJSBIB0619Z-619Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Fuel pump control module

SYMBOL

Fuel pump control module bracket

SYMBOL

Rear pillar inner reinforcement LH

SYMBOL

: Vehicle front
