Exploded View

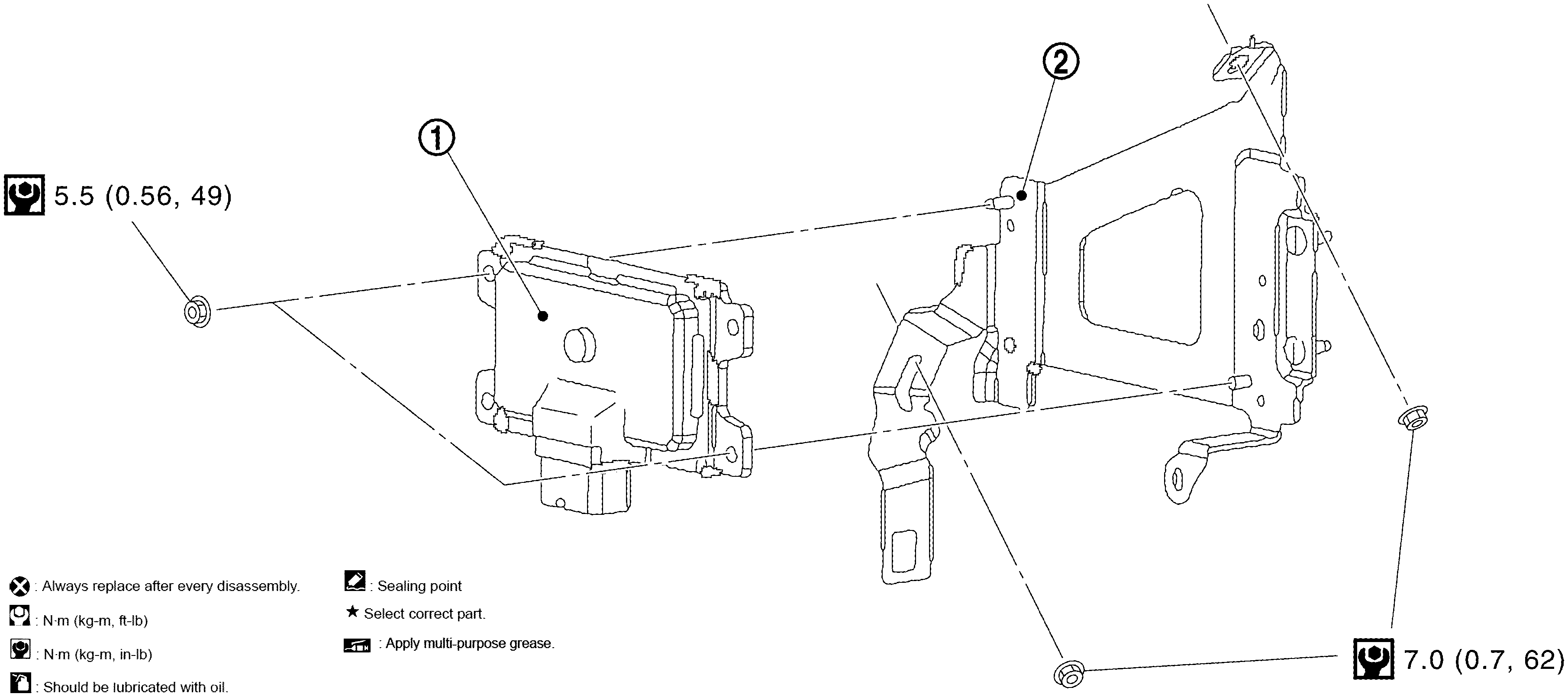

Fig 1: EMCM With Torque Specification
GNSJSBIA3994GB-994Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

EMCM

SYMBOL

EMCM bracket



SYMBOL

: N.m (kg-m, in-lb)
