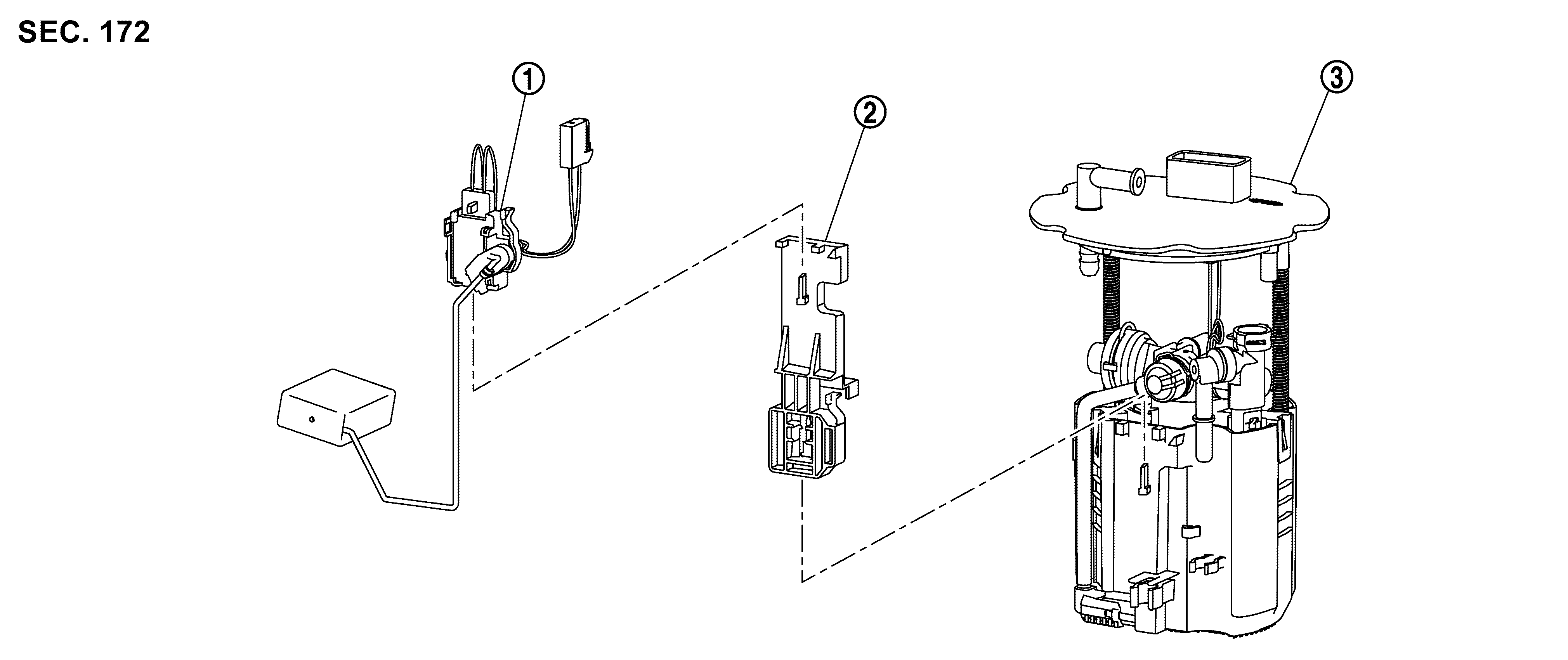

Exploded View: Disassembly
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Main fuel level sensor unit
|
|
Adapter
|
|
Fuel filter and fuel pump assembly
|
NOTE:
Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.
