CONTROL VALVE WITH TCM : Exploded View

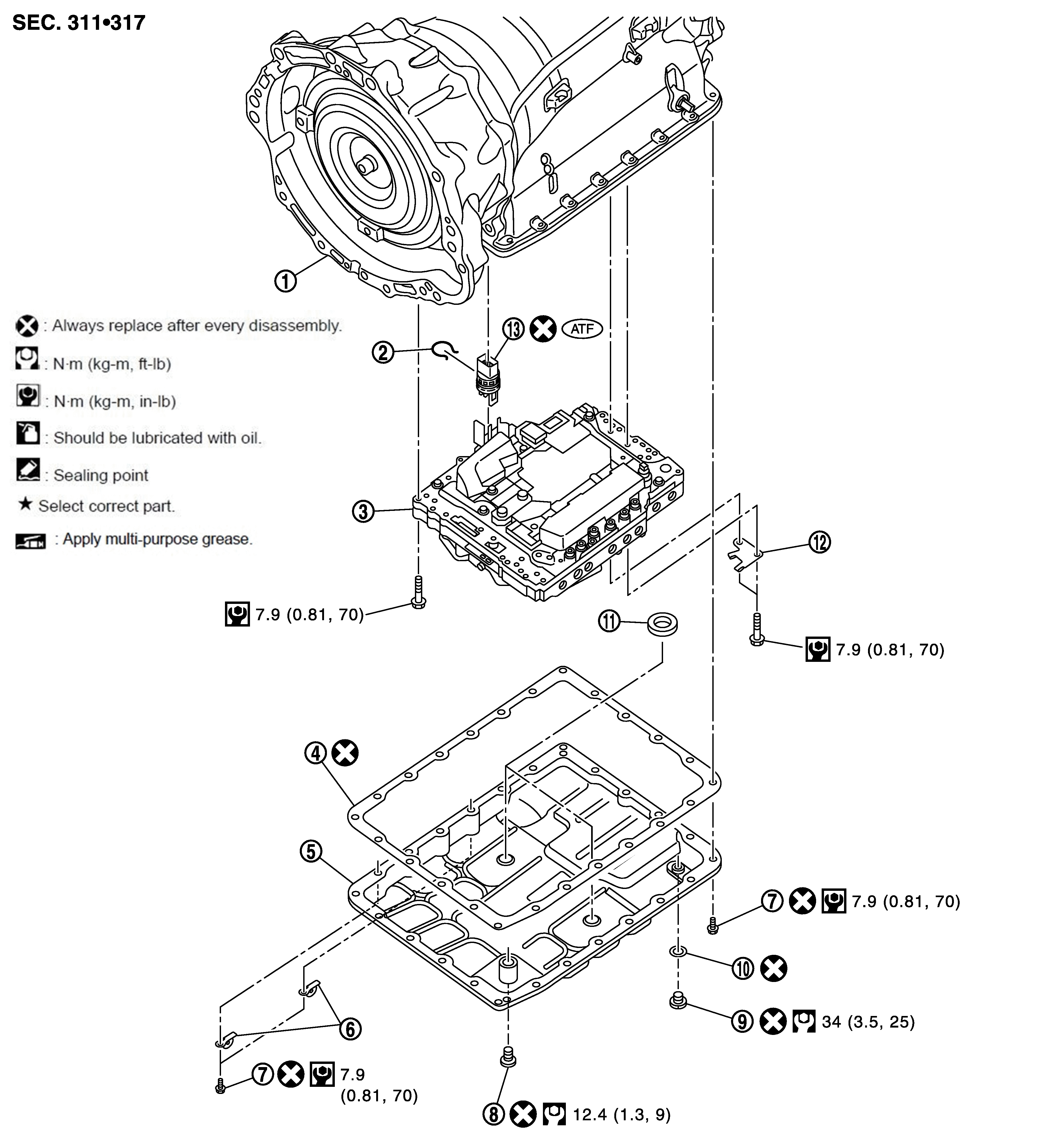

Fig 1: Control Valve With TCM Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T assembly	2.	Snap ring	3.	Control valve & TCM
4.	Oil pan gasket	5.	Oil pan	6.	Clip
7.	Oil pan mounting bolt	8.	Overflow plug	9.	Drain plug
10.	Drain plug gasket	11.	Magnet	12.	Clip
13.	Joint connector
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
	: Apply ATF
