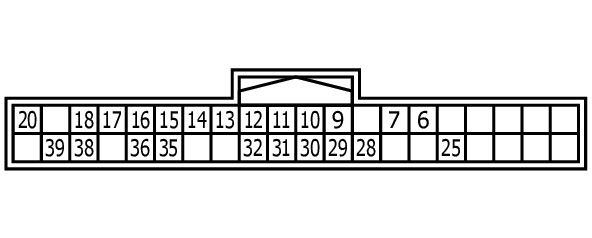

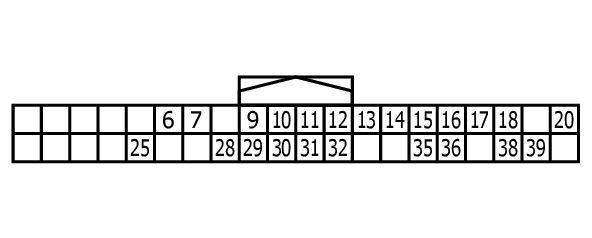

Transfer Control Unit Connector End View (E59)
Connector Types: TH40FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 6 | BR | HI-LO POSITION SEN 1 |
| 7 | Y | TRANSFER FLUID TEMP SEN PWR SUPPLY |
| 9 | G | INTERNAL SPEED SEN GND |
| 10 | Y/G | INTERNAL SPEED SEN IMP |
| 11 | V | 4L SW |
| 12 | L | CAN-H |
| 13 | P | CAN-L |
| 14 | W/R | AUTO SW |
| 15 | P/B | ROTARY POSITION SEN PWM |
| 16 | LG | ROTARY POSITION SEN GND |
| 17 | W/L | LOCK POSITION SEN PWR SUPPLY |
| 18 | BR/Y | ROTARY POSITION SEN PWR SUPPLY |
| 20 | GR | TRANSFER C/U PWR SUPPLY |
| 25 | P/L | HI-LO POSITION SEN 3 |
| 28 | W | MOTOR TEMP SEN PWR SUPPLY |
| 29 | LG/R | HI-LO POSITION SEN 2 |
| 30 | R/B | LOCK POSITION SEN GND |
| 31 | L/O | INTERNAL SPEED SEN DIR |
| 32 | BR/R | IGN |
| 35 | R | 4H SW |
| 36 | L/R | TRANSFER FLUID TEMP SEN GND |
| 38 | G/O | LOCK POSITION SEN SIGNAL |
| 39 | R/W | INTERNAL SPEED SEN PWR SUPPLY |
