Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

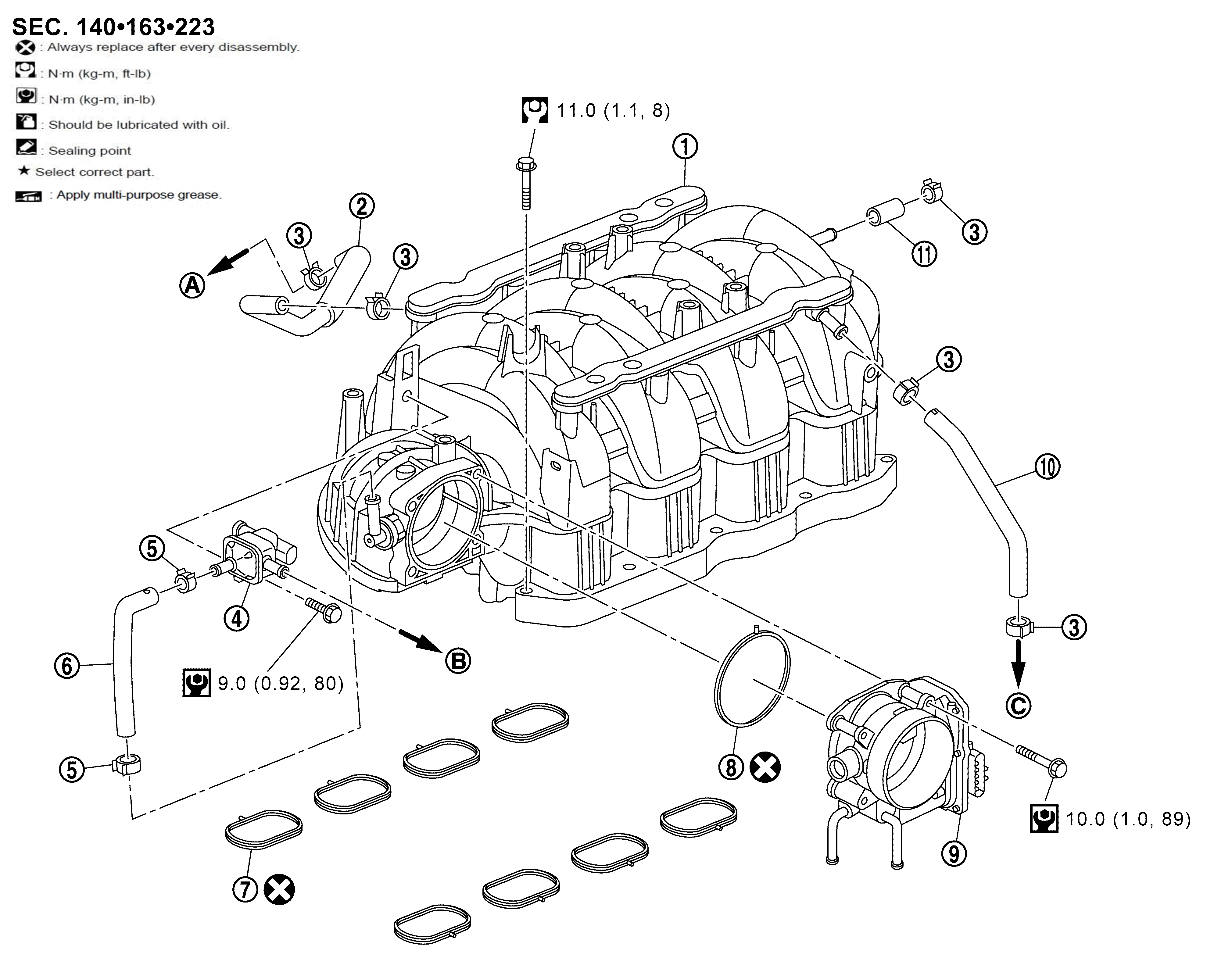

Fig 1: Intake Manifold Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Intake manifold	2.	PCV hose	3.	Clamp
4.	EVAP canister purge control solenoid valve	5.	Clamp	6.	EVAP hose
7.	Gasket	8.	Gasket	9.	Electric throttle control actuator
10.	PCV hose	11.	Cap
A.	To rocker cover (bank 2). Refer to Exploded view.	B.	To centralized under-floor piping. Refer to Hydraulic Layout.	C.	To rocker cover (bank 1). Refer to Exploded view.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
: Always replace after every disassembly.
