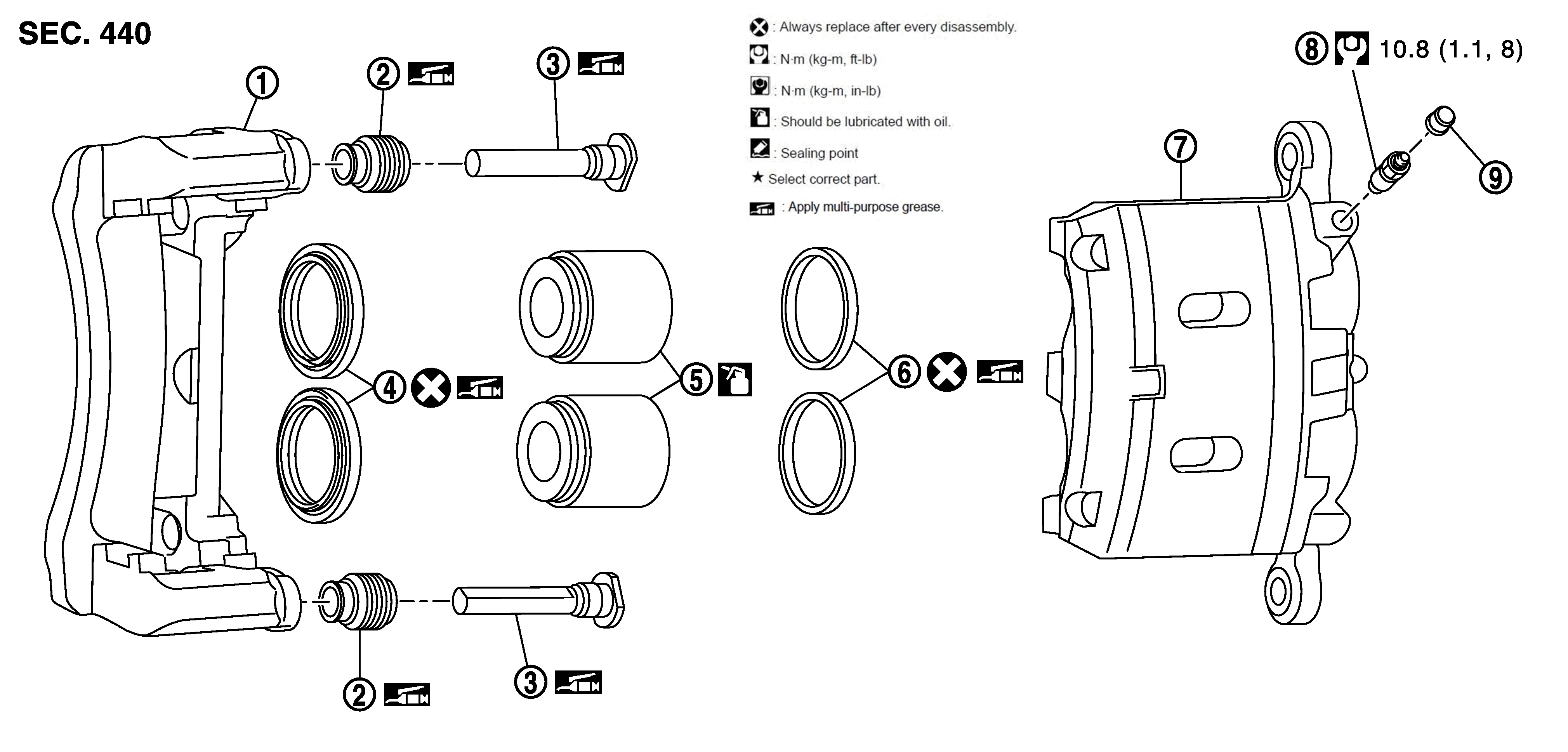

Exploded View: Disassembly
WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Torque member
|
|
Sliding pin boot
|
|
Sliding pin
|
|
|
Piston boot
|
|
Piston
|
|
Piston seal
|
|
|
Cylinder body
|
|
Bleeder valve
|
|
Cap
|
|
: Apply rubber grease.
|
|
: Apply brake fluid.
|
|
|
: Always replace after every disassembly
|
|
|
: N.m (kg-m, ft-lb)
|
