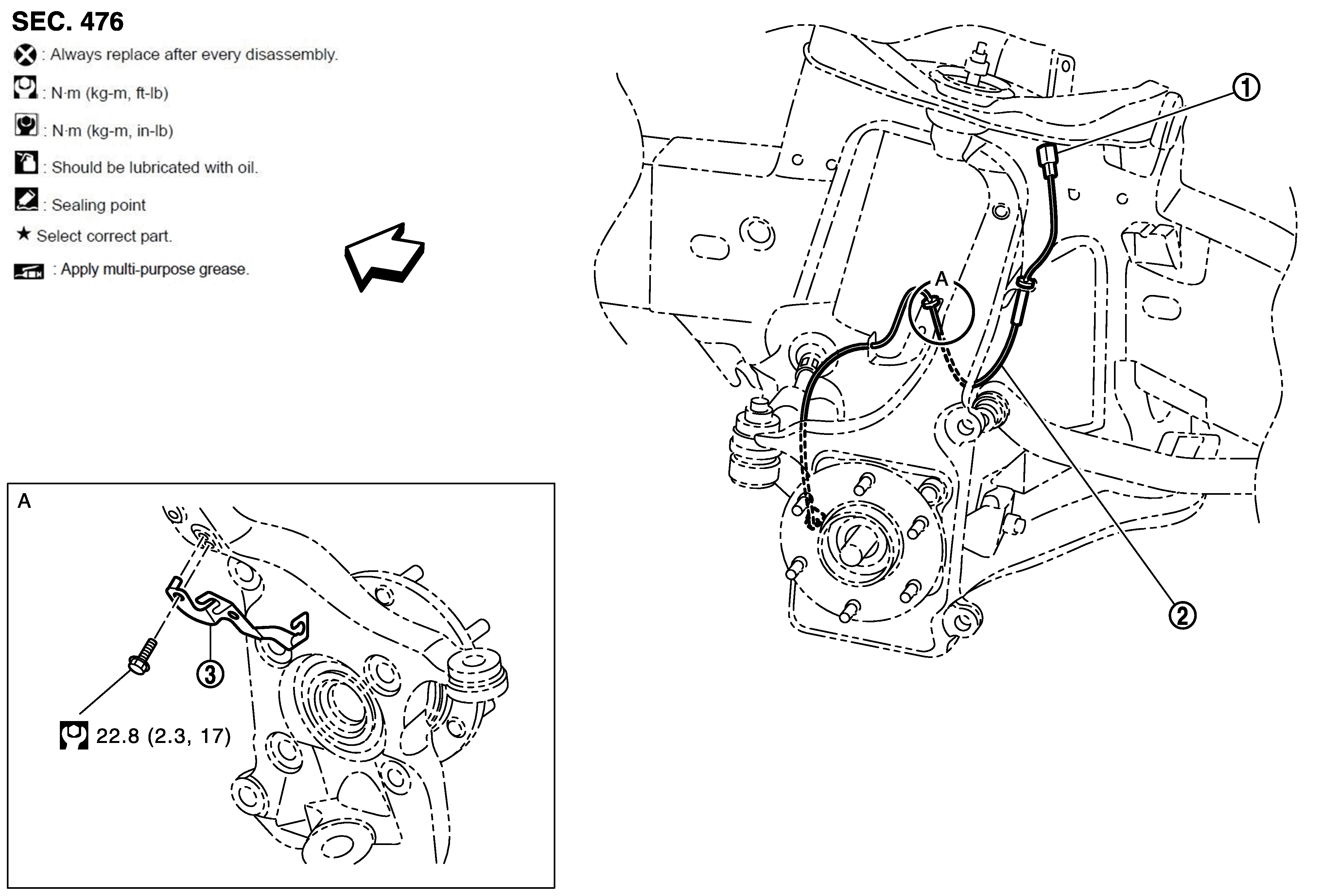

Exploded View
WARNING: This page is about a different car, the 2020 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Front LH wheel sensor harness connector
|
|
Front LH wheel sensor
|
|
Bracket
|
|
: Vehicle front
|
|
|
: N.m (kg-m, ft-lb)
|
NOTE:
Front RH wheel sensor is symmetrically opposite of LH.
