Exploded View

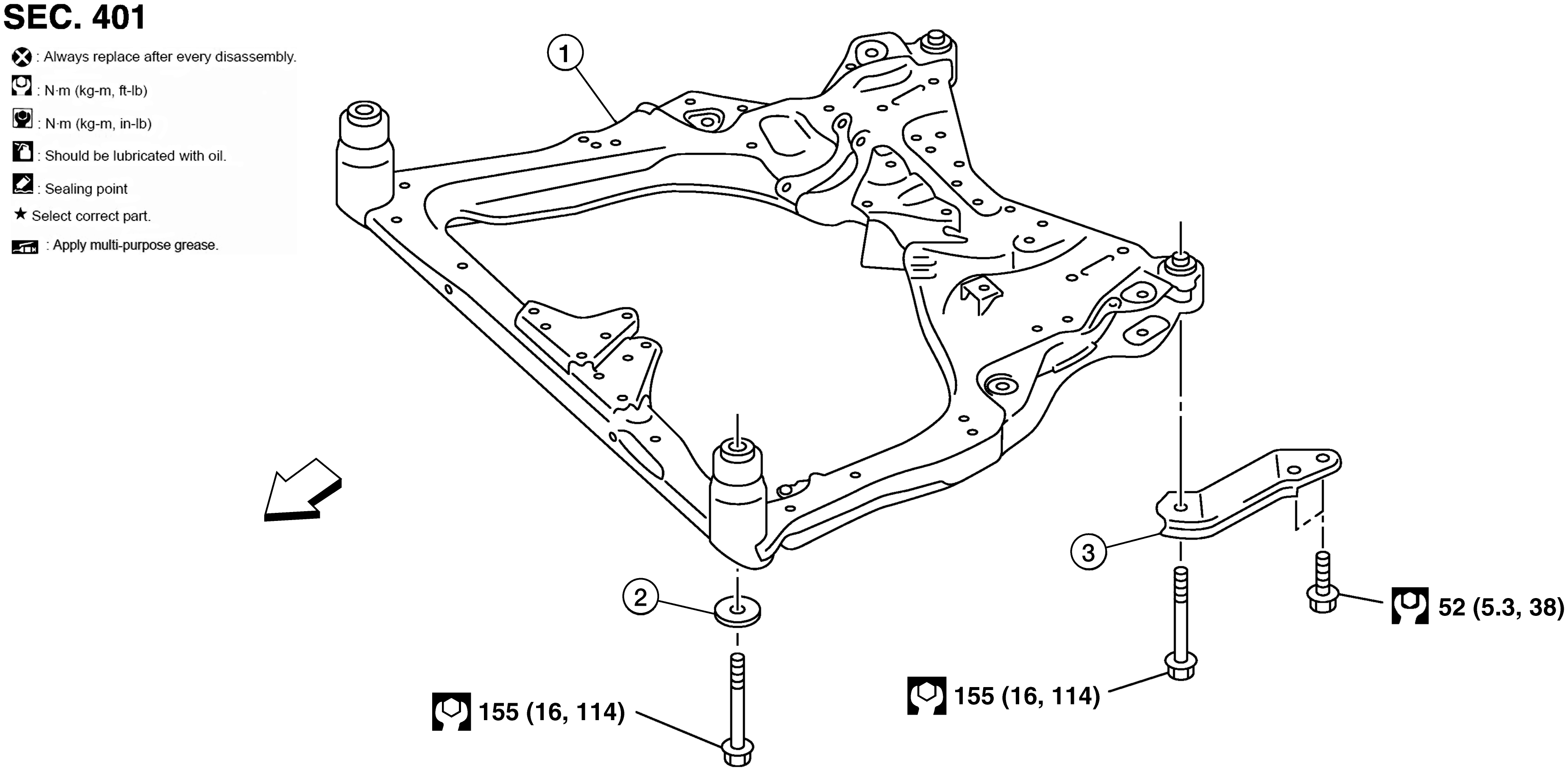

Fig 1: Front Suspension Member With Torque Specifications
GNSAWEIA0242GB-242Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Rebound stopper

3.

Front suspension member stay

SYMBOL

Front
