Removal and Installation: Removal

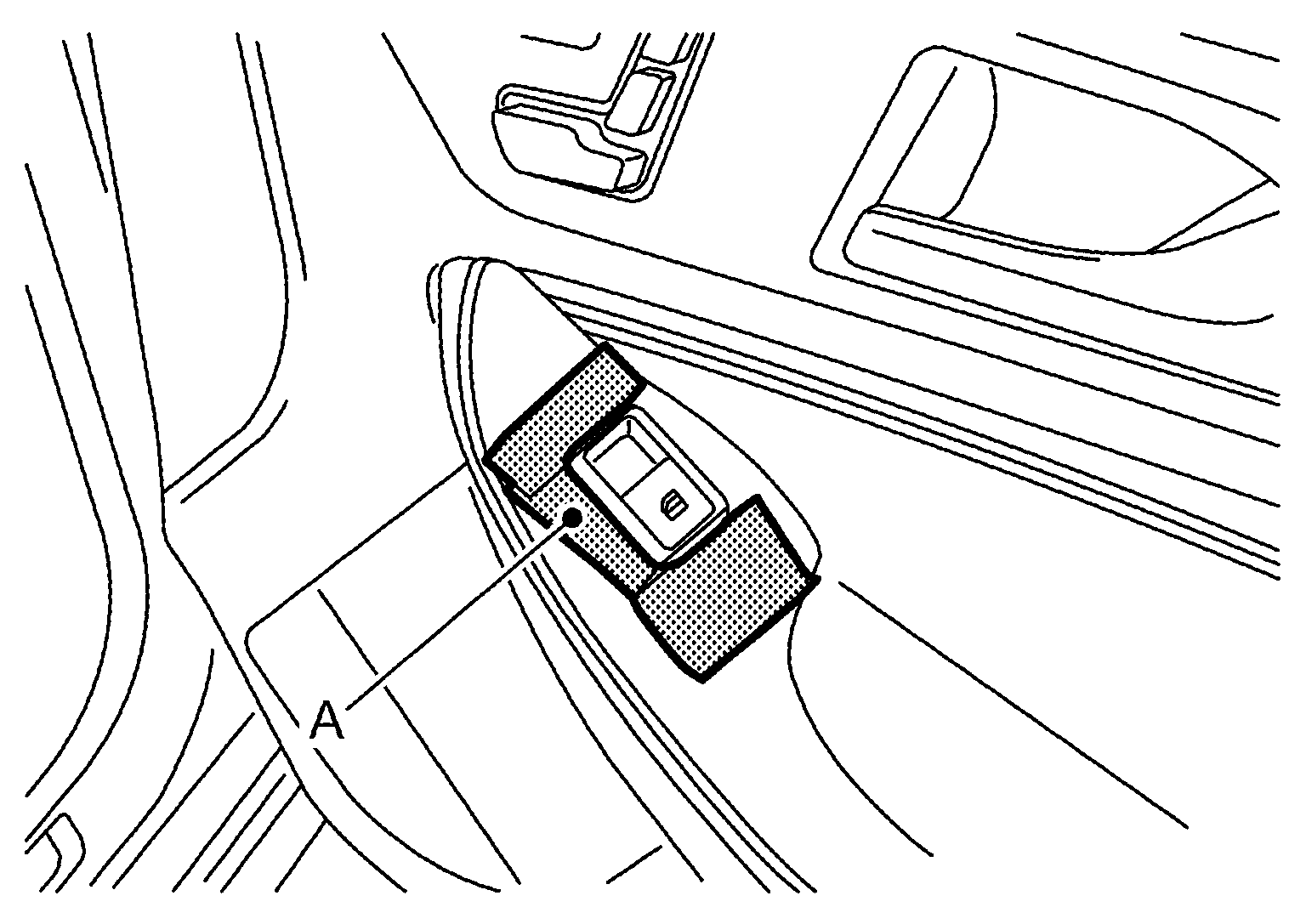

  1. Apply protective tape (A) on the front door grip to protect from damage.
    GNSJMKIB6082Z-082Courtesy of NISSAN NORTH AMERICA, INC.

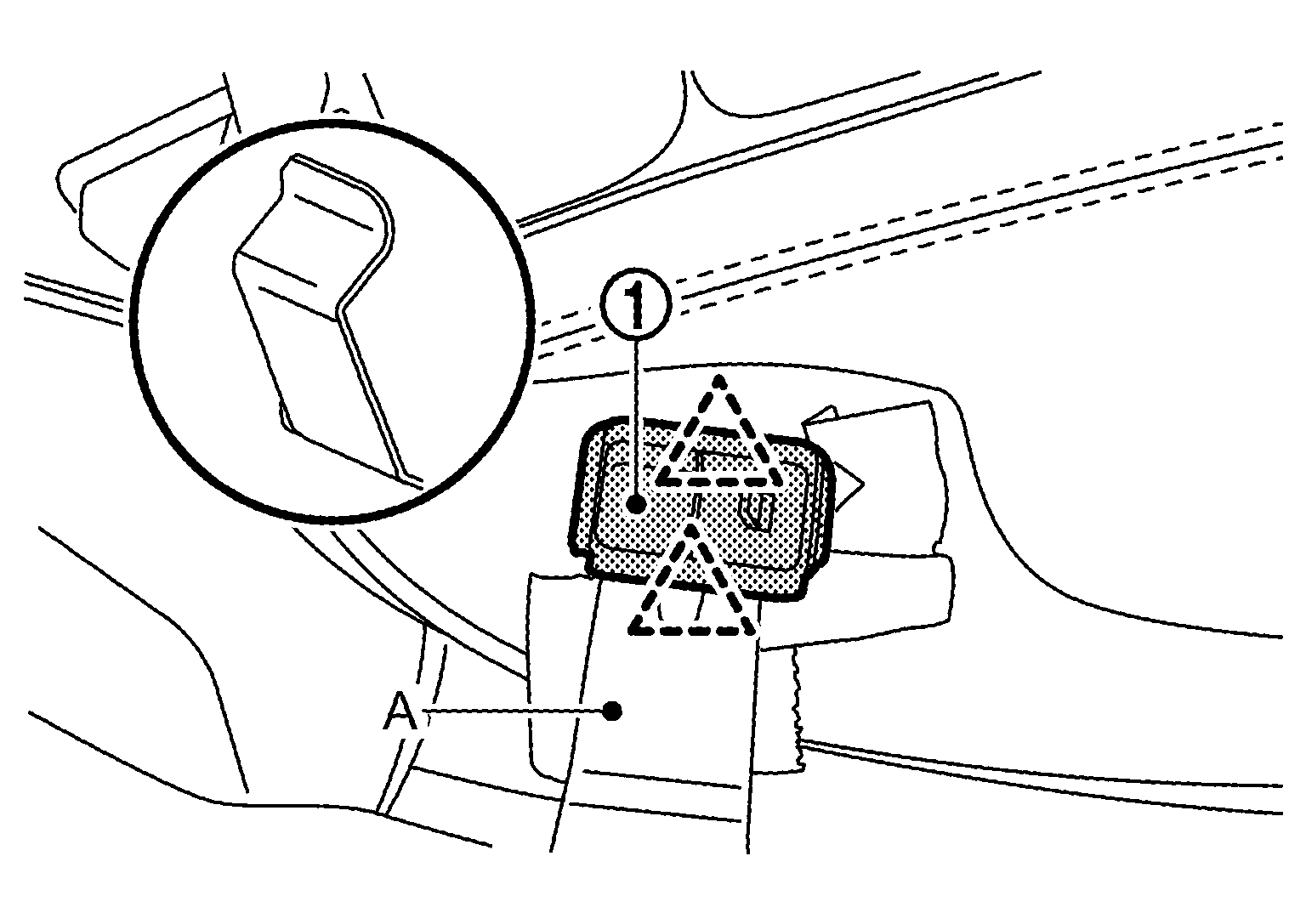

  2. Disengage front power window switch (passenger side) fixing pawls using removal tool (A), and than remove front power window switch (passenger side) SYMBOL from door handle.
    GNSJMKIB6083Z-083Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

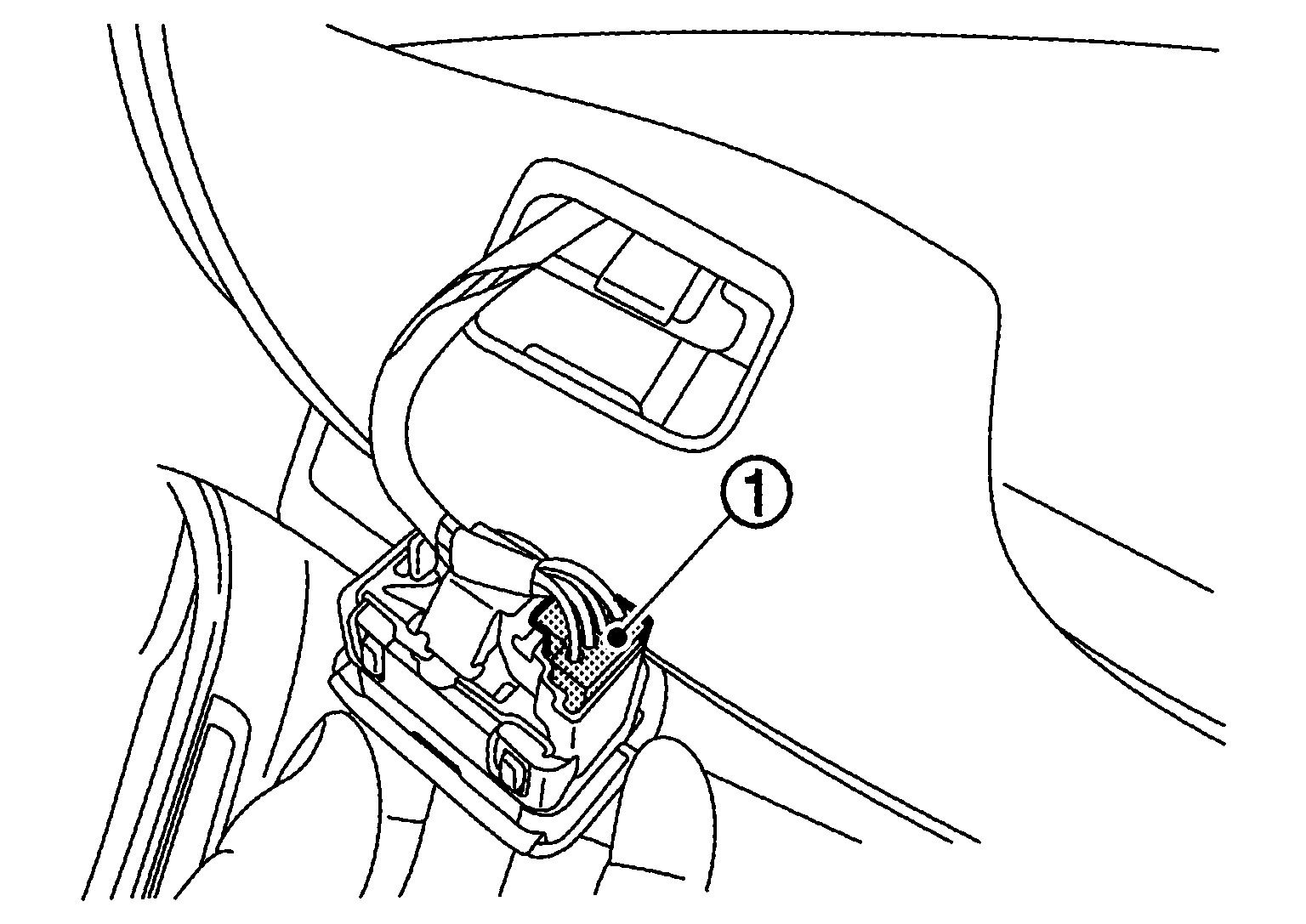

  3. Disconnect front power window switch (passenger side) connector SYMBOL from front power window switch (passenger side).
    GNSJMKIB6084Z-084Courtesy of NISSAN NORTH AMERICA, INC.
