Sectional View

WARNING: This page is about a different variant/trim than selected.

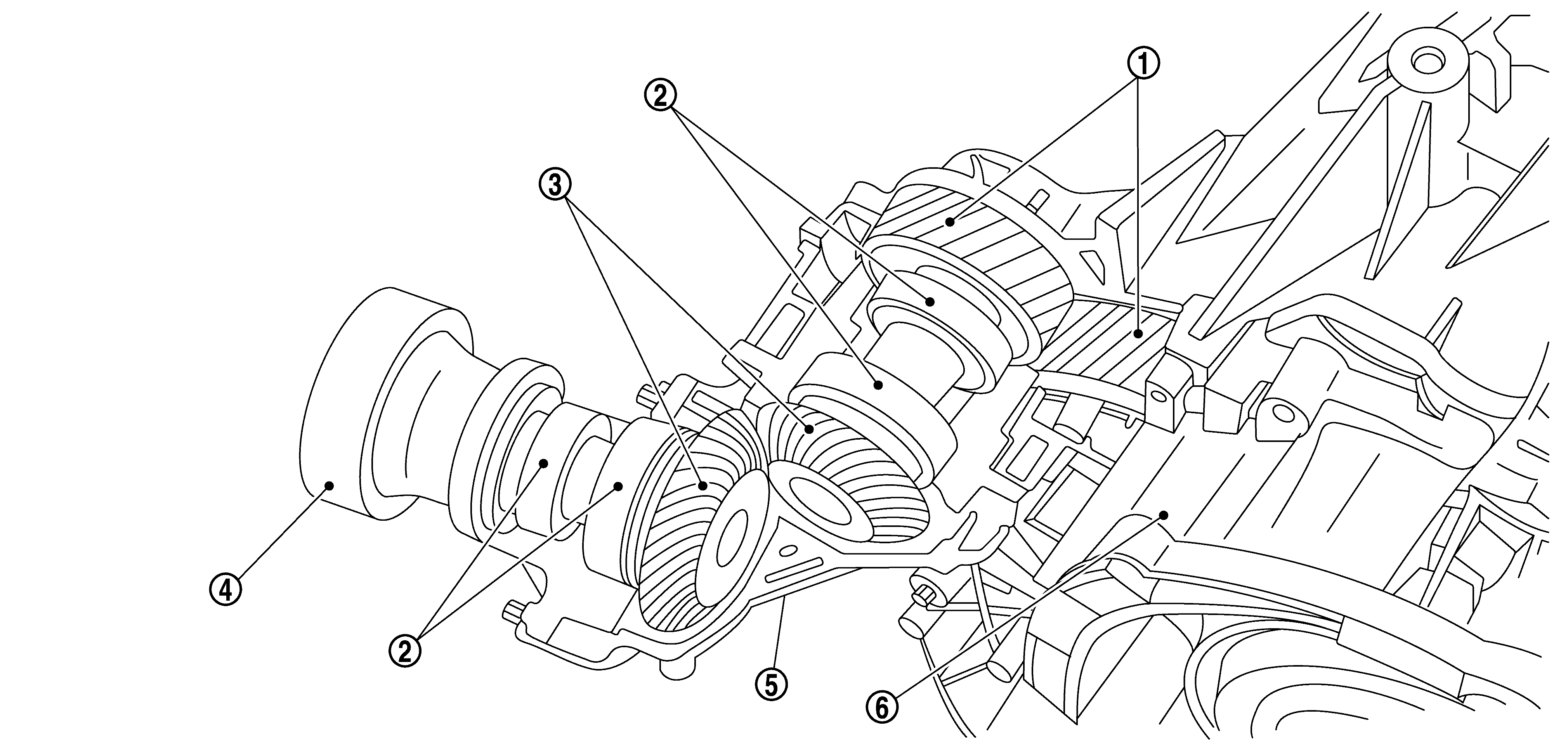

GNSJSDIA8792Z-792Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Spur gears (helically geared)

SYMBOL

Tapered roller bearing

SYMBOL

Bevel gears (spirally geared)

SYMBOL

Companion flange

SYMBOL

Transfer

SYMBOL

Transaxle assembly
