Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

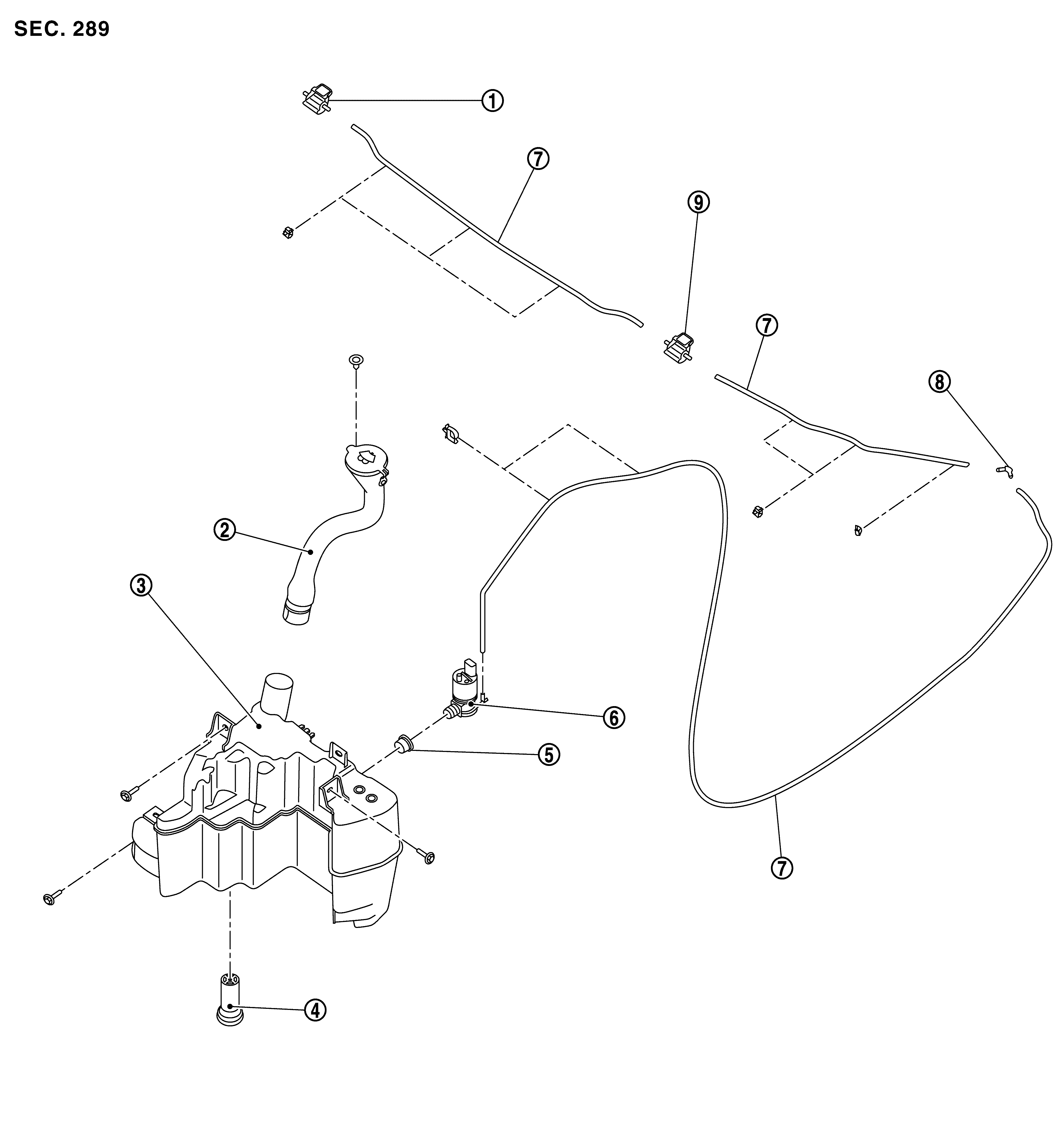

GNSJMLIA4240Z-240Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Washer nozzle RH

SYMBOL

Washer tank inlet

SYMBOL

Washer tank

SYMBOL

Washer level switch

SYMBOL

Packing

SYMBOL

Washer pump

SYMBOL

Washer tube

SYMBOL

L-joint

SYMBOL

Washer nozzle LH
