Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• When replacing with a new traction system hydraulic unit, never remove the protector of the brake tube mounting hole until right before the brake tube is installed.

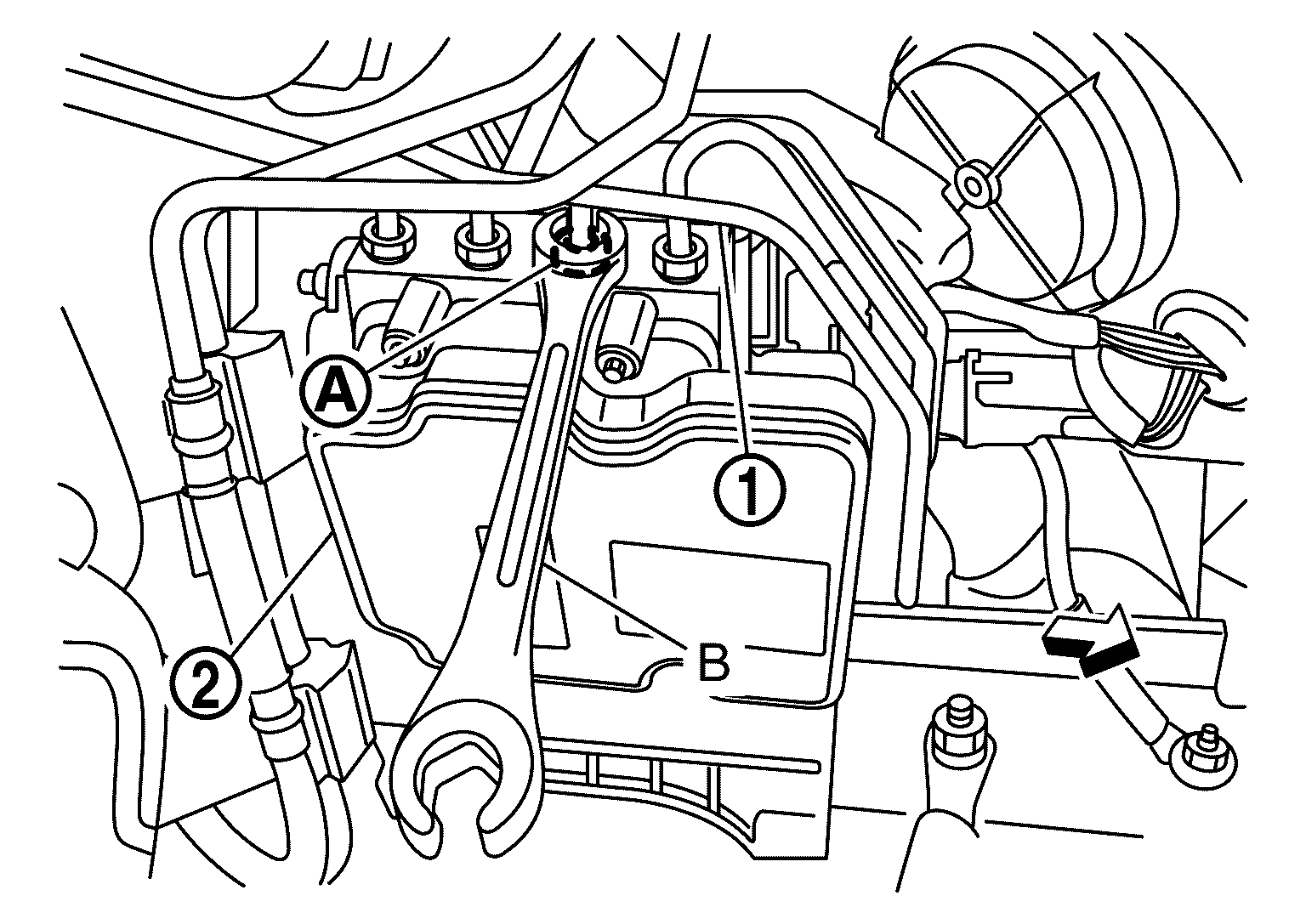

• When installing brake tubes to traction system hydraulic unit , tighten to the specified torque using a flare nut torque wrench (B) so that flare nuts and brake tube are not damaged. Refer to Exploded View .

  Courtesy of NISSAN NORTH AMERICA, INC.

• Install electronic stability program control unit harness connector , follow the procedure described below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION:

  • The following procedure for installing the electronic stability program control unit harness connector must be followed. Otherwise, damage may be caused to the locking mechanism.
  • Never touch, deform or damage electronic stability program control unit harness connector and of socket on electronic stability program control unit.
  • Never allow any foreign objects, dirt or fluids to enter the socket or electronic stability program control unit harness connector. Otherwise, the electronic stability program control unit will be damaged and malfunction.
  1. Push the pawl .
  2. Move the lever in the direction by approx. 90 degrees.
     CAUTION: Never use tool.
  3. After installing the electronic stability program control unit harness connector , move the lever in the direction to secure the locking.

     Courtesy of NISSAN NORTH AMERICA, INC.

     CAUTION: Never handle the connector by lever. The lever can otherwise be damaged.
• Perform adjustment after installation. Refer to Adjustment .
