Power Steering Oil Pump Assembly: Notes

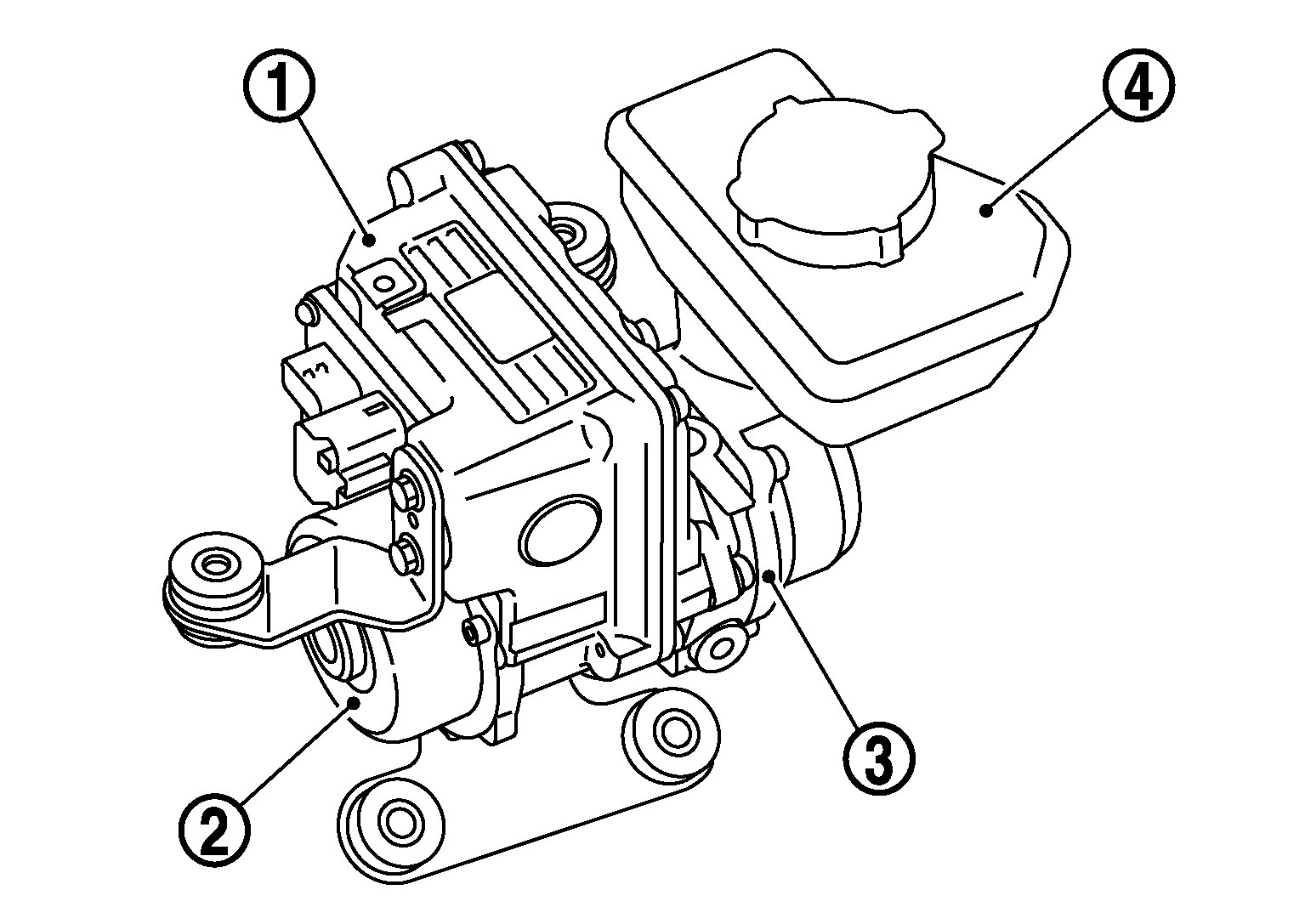

The power steering oil pump assembly is primarily composed of the power steering control module (1), power steering motor (2), power steering oil pump (3), and reservoir tank (4).

GNSJSGIA0911Z-911Courtesy of NISSAN NORTH AMERICA, INC.
