Switch Name And Function: BCI

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

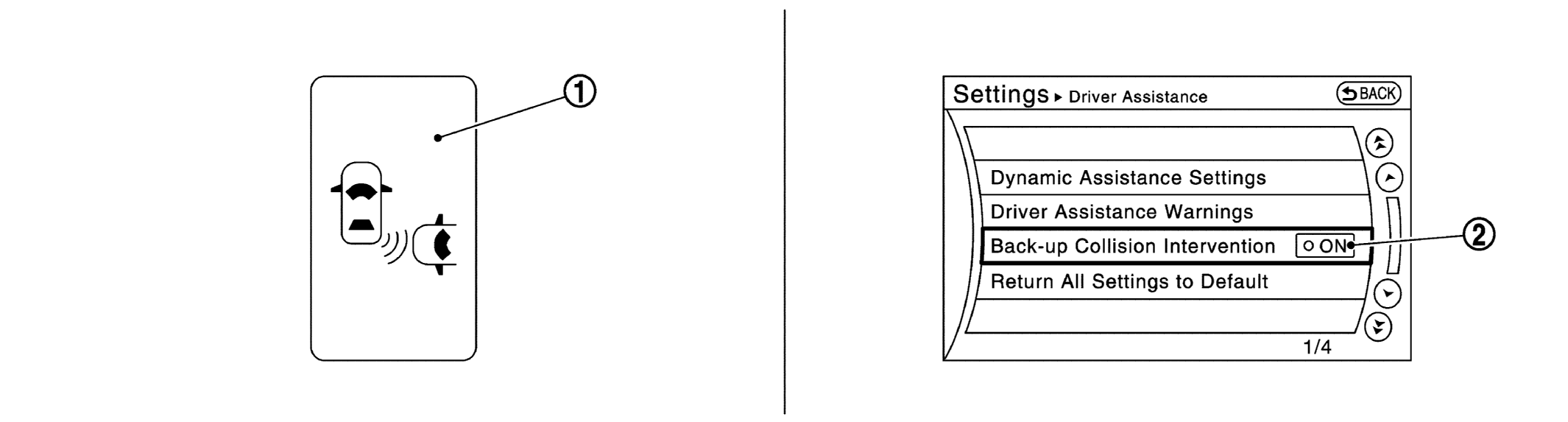

G09182805Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
WHITE-1 BCI switch Turns BCI systems ON/OFF
(When the setting of BCI system on the navigation system setting screen is ON)
WHITE-2 BCI setting screen
(Navigation system setting screen)
The setting of BCI system can be switched between ON and OFF
