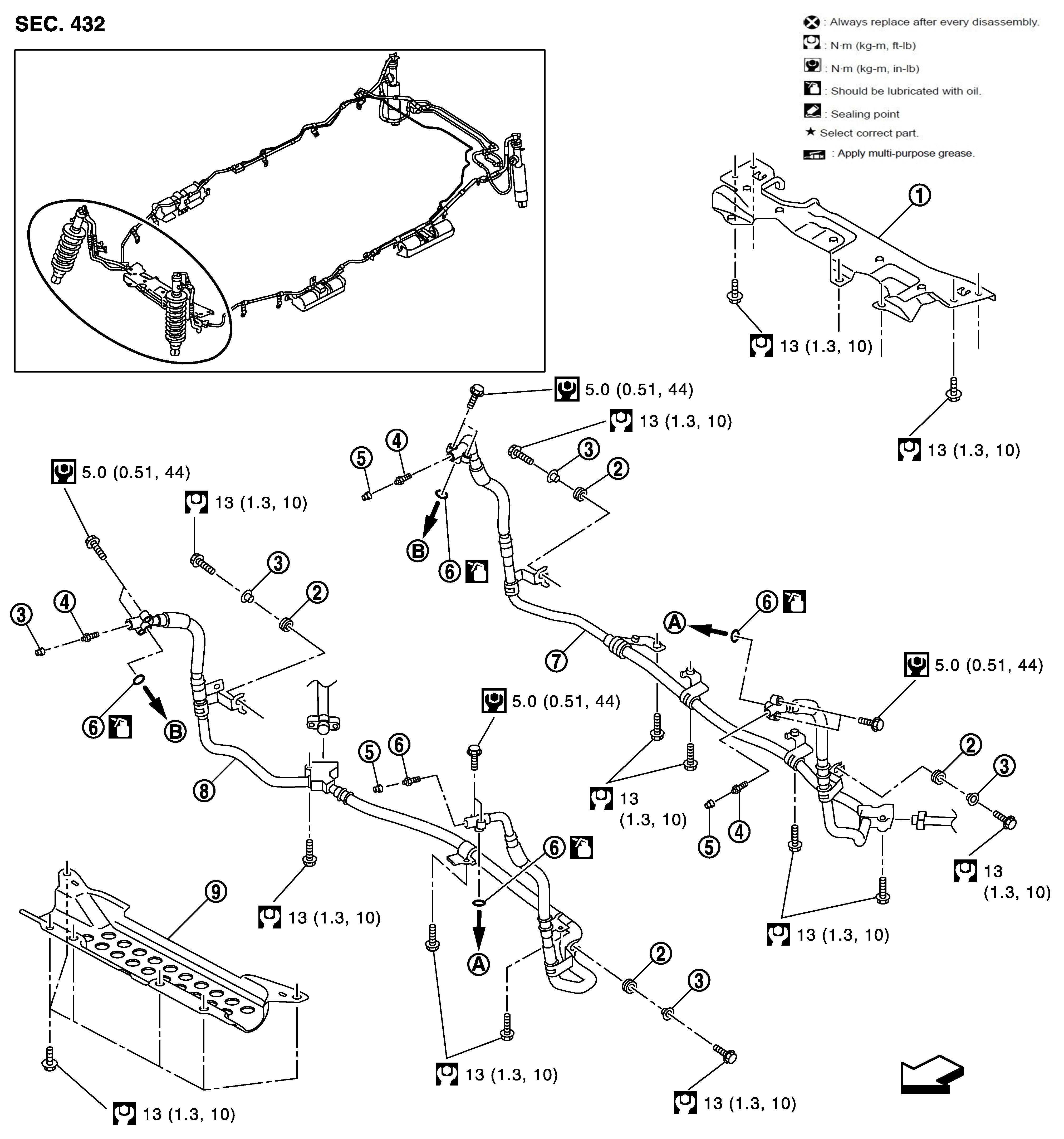

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Protector B |
2. |
Bushing |
3. |
Collar |
| 4. |
Bleeder valve |
5. |
Cap |
6. |
O-ring |
| 7. |
Front tube assembly A |
8. |
Front tube assembly B |
9. |
Protector A |
| A. |
To front shock absorber LH |
B. |
To front shock absorber RH |
|
|
: |
Vehicle front |
: N•m (kg - m, ft - lb) |
: N•m (kg - m, in - lb) |
: |
Apply genuine NISSAN hydraulic suspension fluid |
