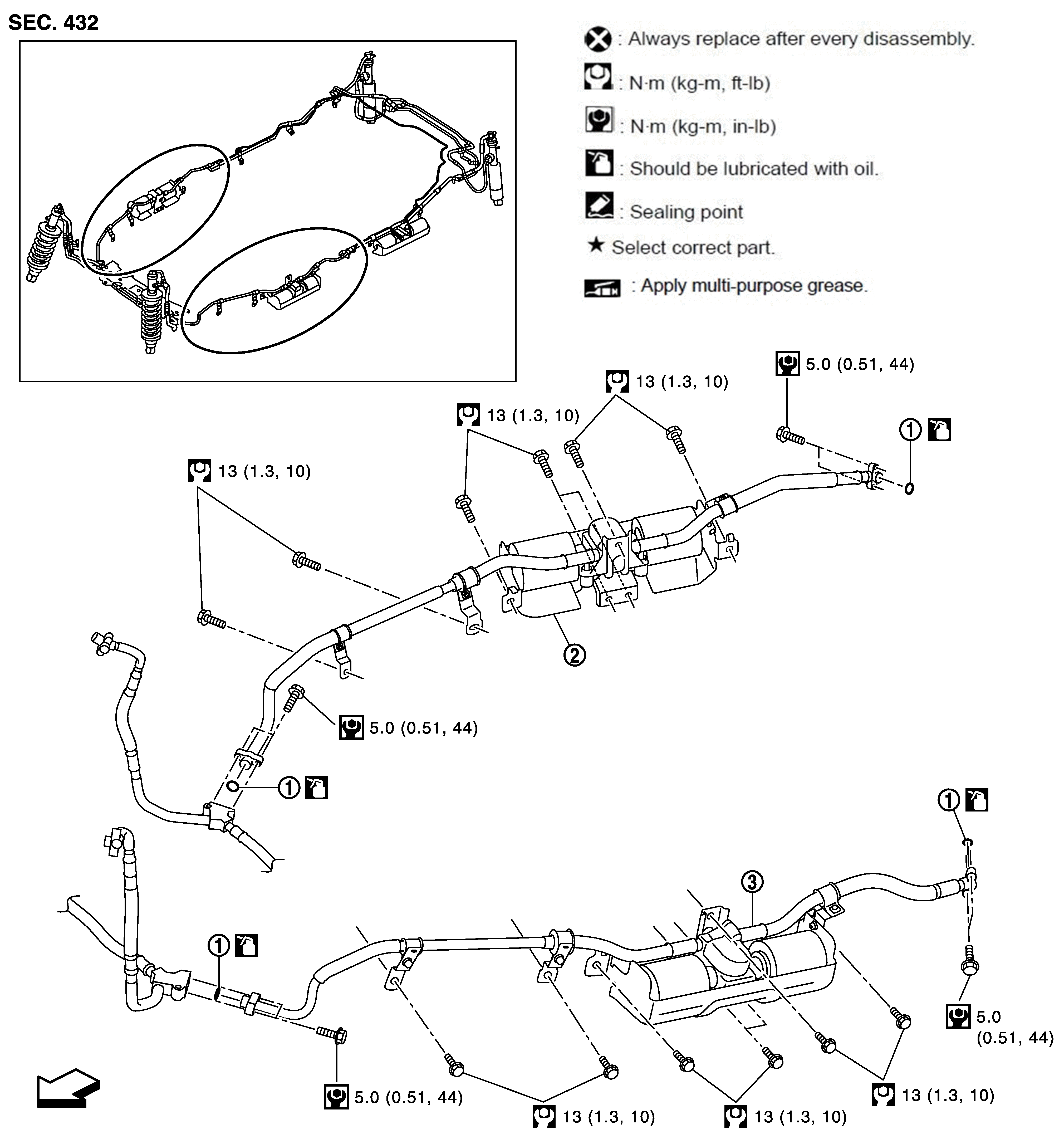

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
O-ring |
2. |
Accumulator assembly RH |
3. |
Accumulator assembly LH |
: |
Vehicle front |
: N•m (kg - m, ft - lb) |
: N•m (kg - m, in - lb) |
: |
Apply genuine NISSAN hydraulic suspension fluid |
