WIRE TO WIRE Connector End View (R2)

Connector Types: TH24FW-NH

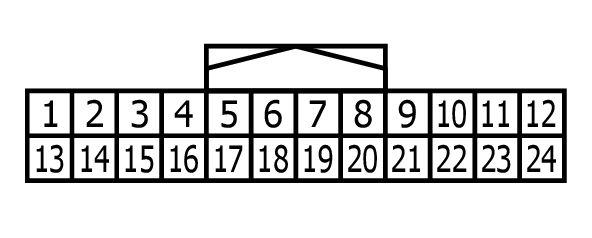

Fig 1: Terminal-side

GNSW35736

Courtesy of NISSAN NORTH AMERICA

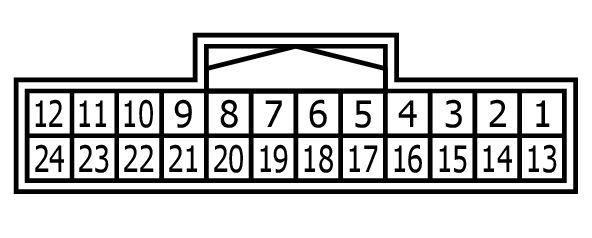

Fig 2: Harness-side

GNSW35966

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	P	-
2	GR	-
3	V	-
4	L/O	-
5	B	-
6	G	-
7	O	-
8	SHIELD	-
9	Y/L	-
10	Y/G	-
11	B/SB	-
12	W/R	-
17	L/O	-
23	BR	-
24	B/Y	-
