WIRE TO WIRE Connector End View (B511)

Connector Types:  NS16MW-CS

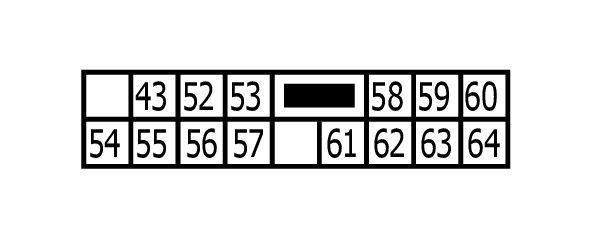

Fig 1: Terminal-side
GNSW36113Courtesy of NISSAN NORTH AMERICA

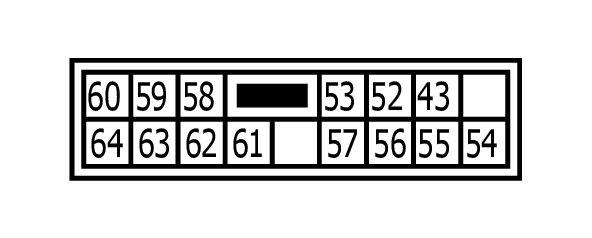

Fig 2: Harness-side
GNSW36836Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
43 - -
52 - -
53 - -
54 - -
55 - -
56 - -
57 - -
58 - -
59 - -
60 - -
61 - -
62 - -
63 - -
64 - -
