Exploded View With Torque Specifications: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

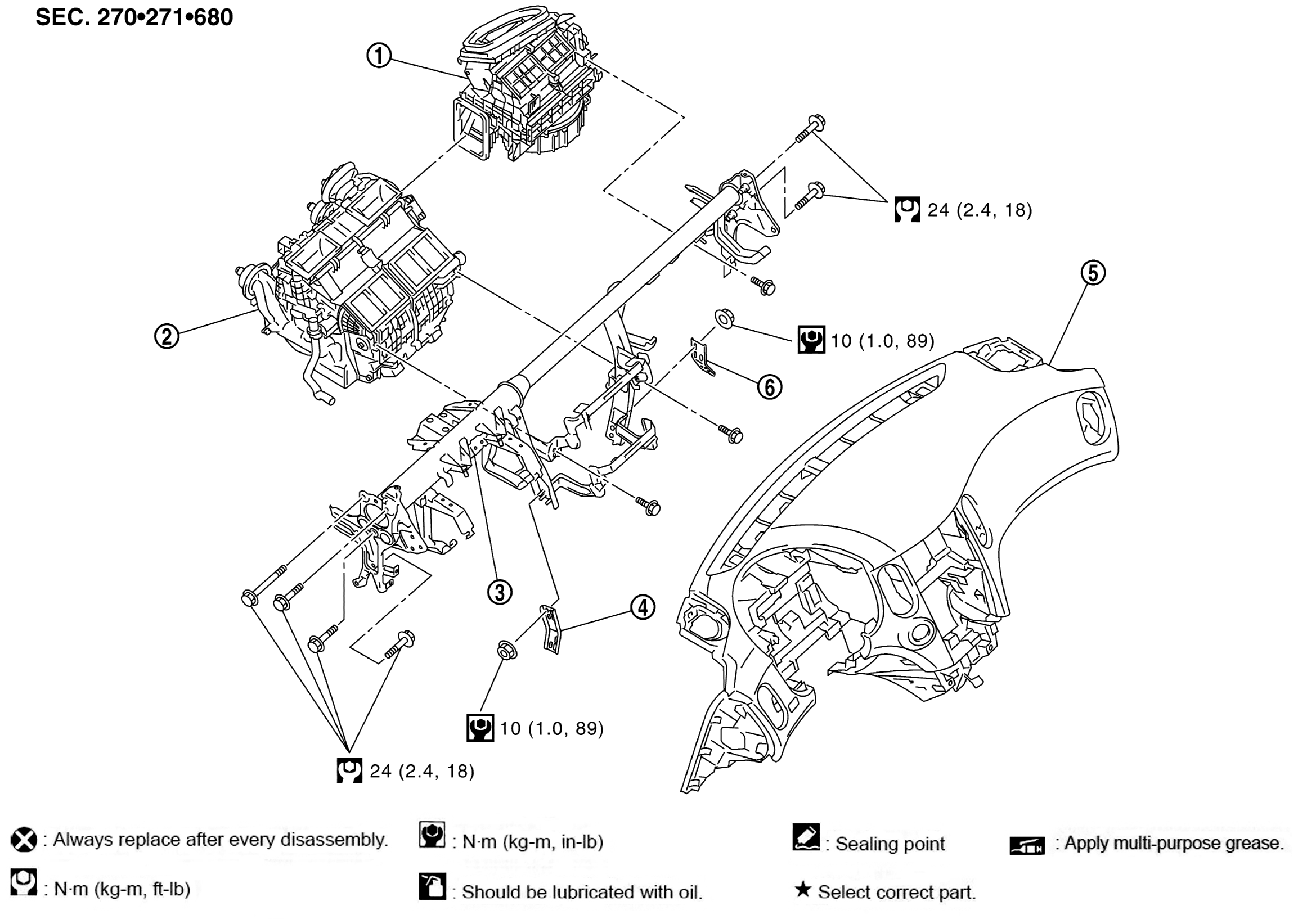

GNSJSIIA1968GB-968Courtesy of NISSAN NORTH AMERICA, INC.
1. Blower unit 2. Heater & cooling unit assembly 3. Steering member
4. Instrument stay LH 5. Instrument panel assembly 6. Instrument stay RH
BOLT : N•m (kg - m, ft - lb)
BOLTIN : N•m (kg - m, in - lb)
