Removal And Installation: Installation
WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
Note the following, and installation is in the reverse order of removal.
CAUTION:
Check that there are no pinched or restricted areas on the breather hose caused by bending or winding when installing it.

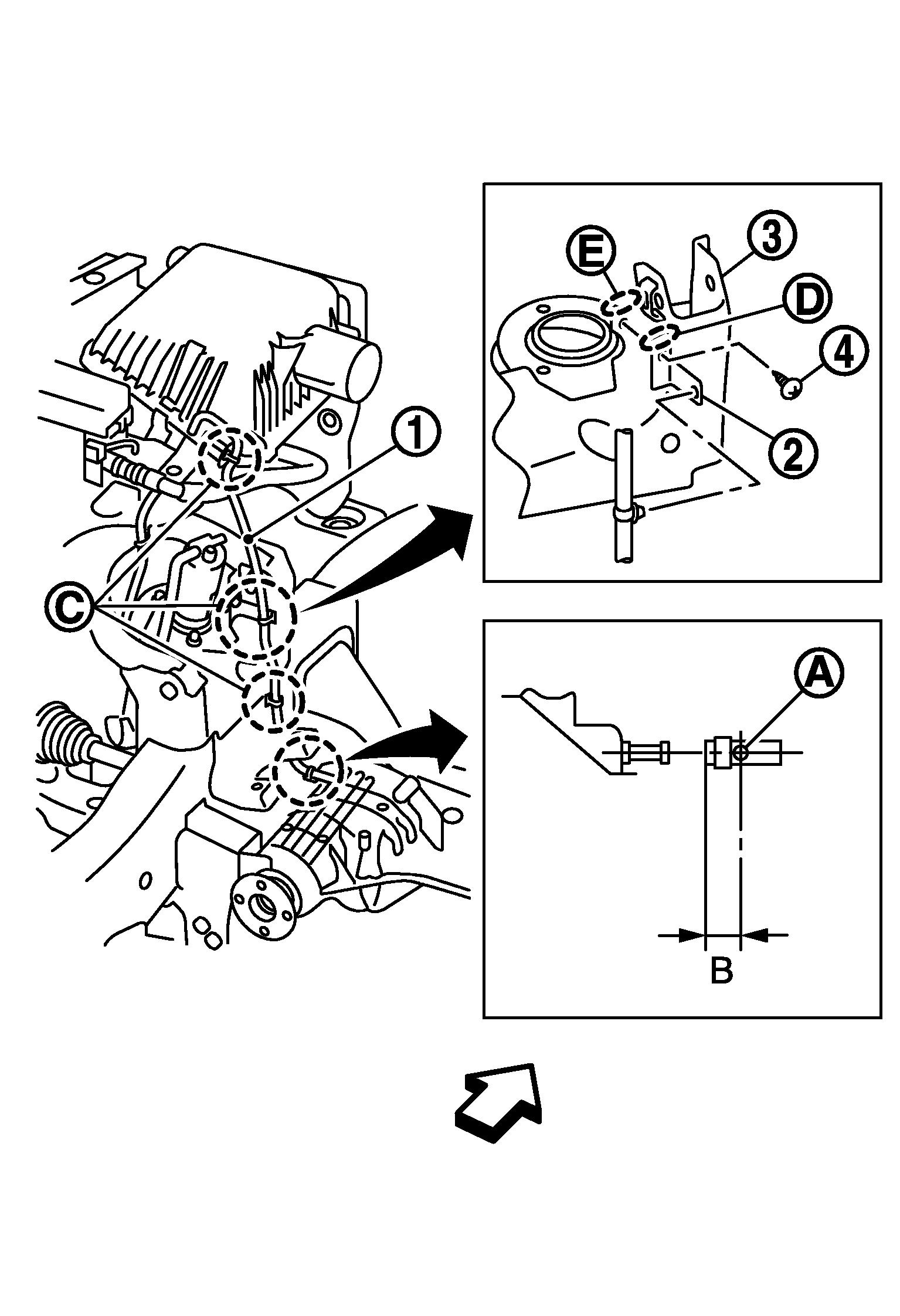

- Install the breather hose (1) as shown in the figure.
: Vehicle front
- Install the breather hose (1) of final side with the paint mark (A) facing vehicle front, and insert the breather hose until dimension (B) shown as follows.
B: 20 mm (0.79 in) CAUTION:- Never reuse hose clamp.
- Install the hose clamp with the tab facing vehicle front.
- Be sure to fix the breather hose in (C) position.
- Install the breather hose (1) of final side with the paint mark (A) facing vehicle front, and insert the breather hose until dimension (B) shown as follows.
- If remove the bracket (2), align stopper part (D) to part (E) of suspension mounting bracket (3), and tighten the mounting bolt (4) to specified torque.
Specified torque: 8.3 N•m (0.85 kg-m, 73 in-lb)
- When oil leaks while removing final drive assembly, check oil level after the installation. Refer to INSPECTION .
