Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

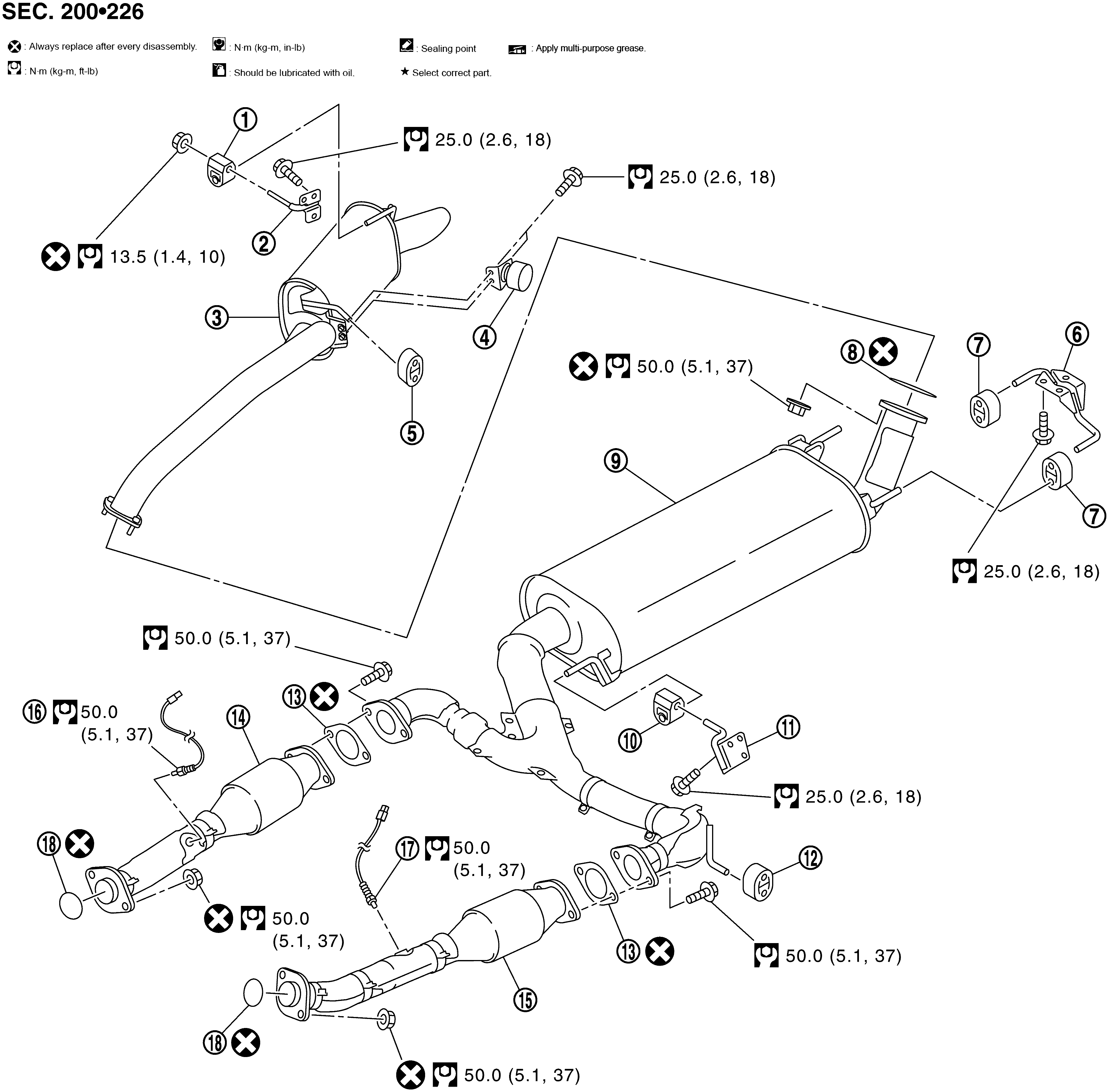

Fig 1: Exhaust System Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Mounting rubber	2.	Mounting bracket	3.	Rear muffler
4.	Dynamic damper	5.	Mounting rubber	6.	Mounting bracket
7.	Mounting rubber	8.	Gasket	9.	Main muffler
10.	Mounting rubber	11.	Mounting bracket	12.	Mounting rubber
13.	Gasket	14.	Exhaust front tube (RH)	15.	Exhaust front tube (LH)
16.	Heated oxygen sensor 2 (bank 2)	17.	Heated oxygen sensor 2 (bank 1)	18.	Ring gasket
	: Always replace after every disassembly
	: N•m (kg - m, ft - lb)
