Exploded View

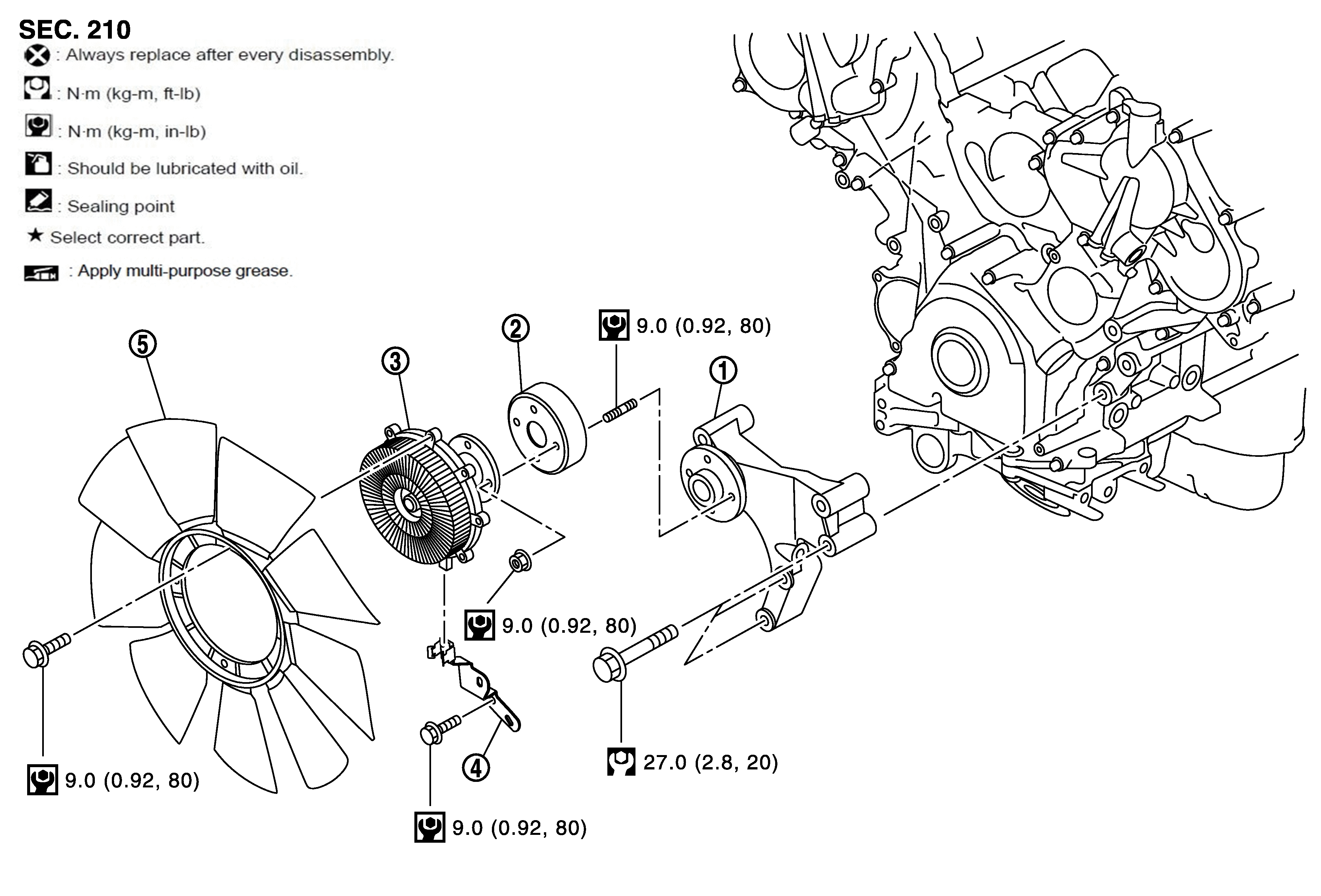

Fig 1: Cooling Fan With Torque Specifications
GNSJPBIA3326GB-326Courtesy of NISSAN NORTH AMERICA, INC.
1. Fan bracket 2. Cooling fan pulley 3. Fan coupling
4. Bracket 5. Cooling fan
BOLT : N•m (kg - m, ft - lb)
BOLTIN : N•m (kg - m, in - lb)
