Disassembly And Assembly Of Center Console Assembly: Disassembly

  1. Remove center console assembly. Refer to REMOVAL AND INSTALLATION .
  2. Remove console mask.

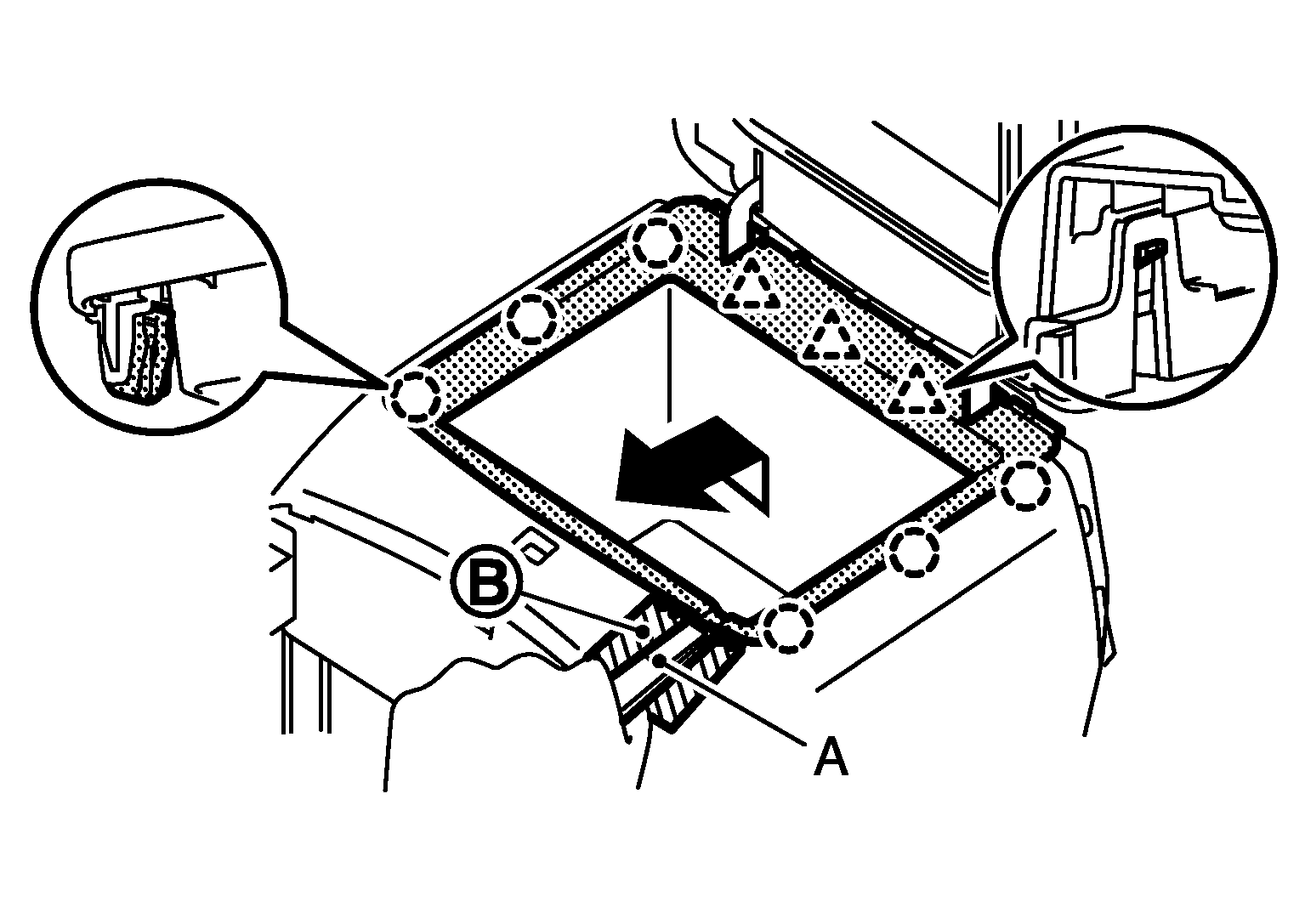

    GNSJMJIA4231ZZ-231Courtesy of NISSAN NORTH AMERICA, INC.
    1. Open console lid.
    2. Remove console mask fixing clips with remover tool (A).
    3. Pull console mask up and back.
    4. Disconnect cool box switch connector (with Cool box).
    SANKAKU-H : Pawl
    MARU-H : Clip
    CAUTION:

    Apply protective tape (B) on the part to protect it from damage.

  3. Remove console lid assembly mounting screws (A) and (B), and then remove console lid assembly.

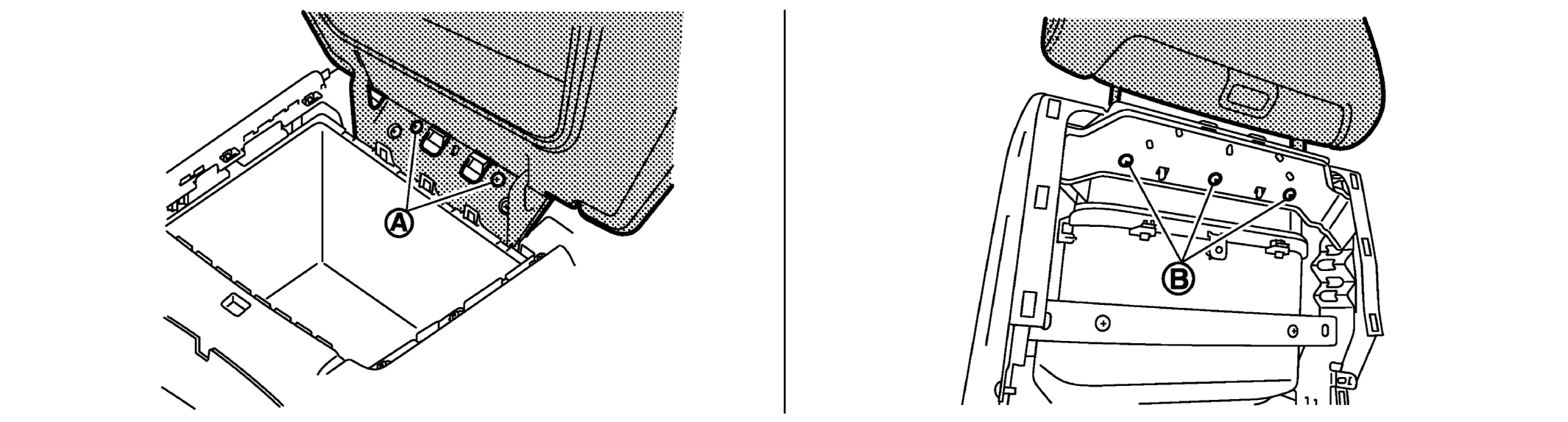

    G07025524Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove console box fixing screws, and then remove console box.
