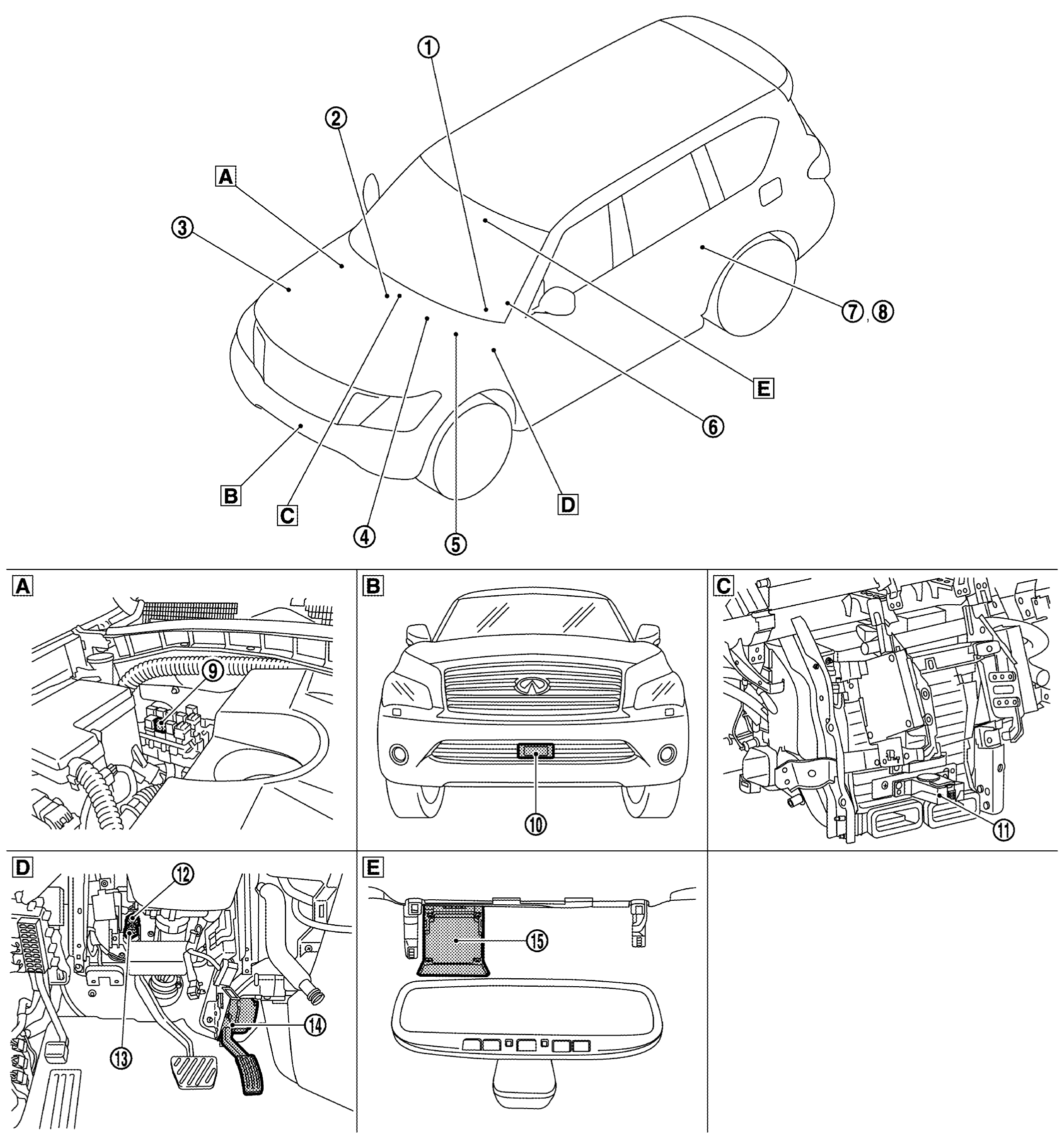

Combination meter |
- Performs the following operations using the signals received from the ADAS control unit via the CAN communication
- Displays the FEB system operation status using the meter display signal
- Illuminates the FEB warning lamp using the FEB warning lamp signal
|
 |
AV control unit |
- AV control unit transmits the system selection signal to ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
ECM |
- ECM transmits the accelerator pedal position signal via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
TCM |
- TCM transmits the signal related to A/T control to ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
ABS actuator and electric unit (control unit) |
- ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication
- ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
Steering angle sensor |
- Measures the rotation amount, rotation speed, and rotation direction of steering wheel, and then transmits them o ADAS control unit via CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
 |
ADAS control unit |
|
 |
ADAS control unit 2 |
|
 |
ICC brake hold relay |
Refer to ICC BRAKE HOLD RELAY |
 |
ICC sensor |
Refer to ICC SENSOR |
 |
Driver assistance buzzer |
Refer to DRIVER ASSISTANCE BUZZER |
 |
Stop lamp switch |
Refer to ICC BRAKE SWITCH / STOP LAMP SWITCH |
 |
ICC brake switch |
 |
Accelerator pedal actuator |
Accelerator pedal actuator receives an accelerator pedal feedback force control signal from the ADAS control unit via ITS communication and pushes back the accelerator pedal |
 |
Lane camera unit |
Refer to LANE CAMERA UNIT |
