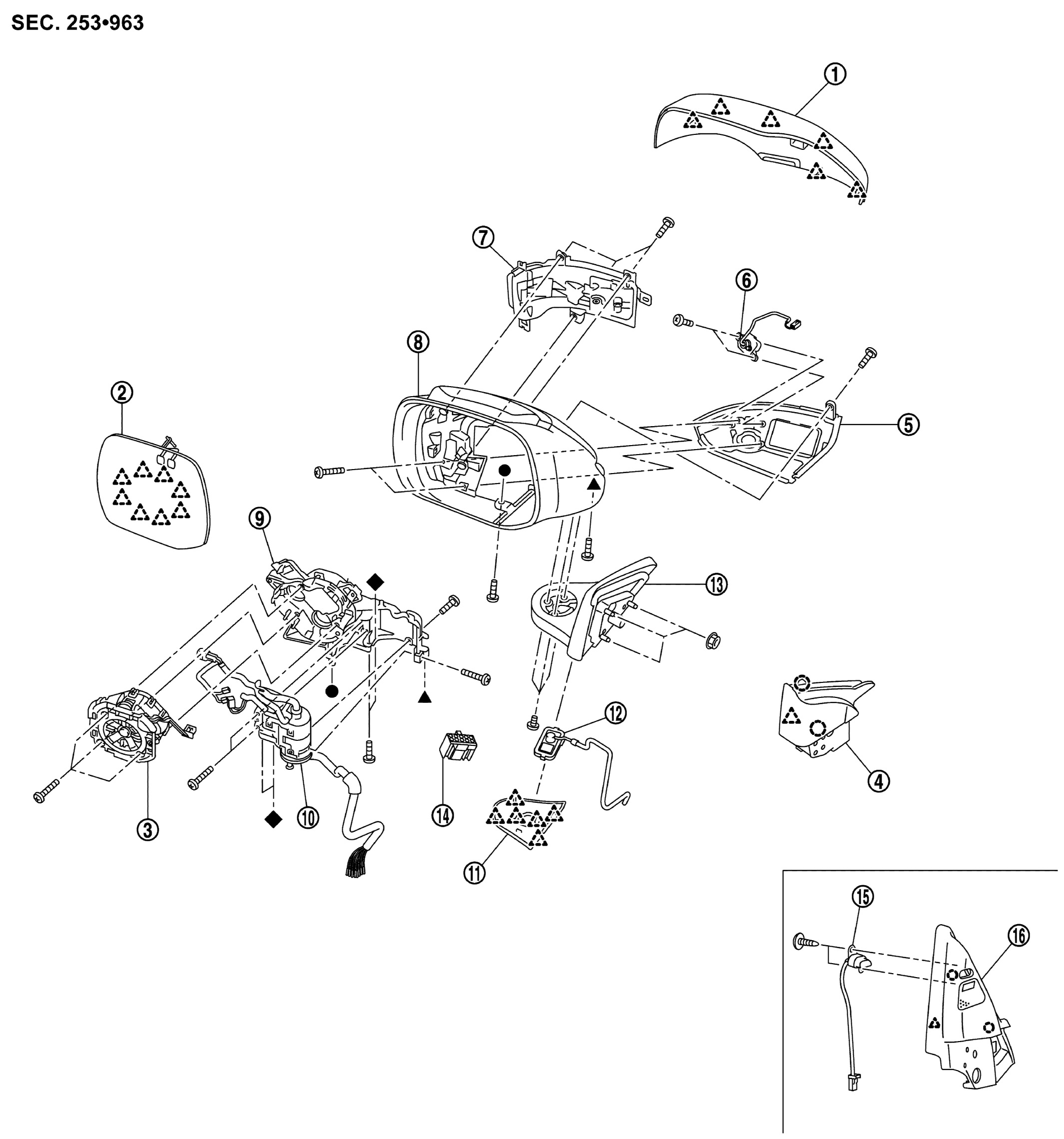

Exploded View With Torque Specifications
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Door mirror cover |
2. |
Glass mirror |
3. |
Actuator assembly |
| 4. |
Door mirror corner cover (without BSW indicator) |
5. |
Side camera finisher |
6. |
Around view camera |
| 7. |
Side turn signal lamp |
8. |
Housing |
9. |
Bracket |
| 10. |
Power fold unit |
11. |
Base cover |
12. |
Puddle lamp |
| 13. |
Base |
14. |
Connector |
15. |
BSW indicator assembly |
| 16. |
Door mirror corner cover (with tweeter and BSW indicator) |
|
|
|
|
 |
: Clip |
|
|
|
|
 |
: Pawl |
|
|
|
|
,
,
: Indicates that the part is connected at points with same symbol in actual vehicle. |
