INFINITI Vehicle Immobilizer System-NATS
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

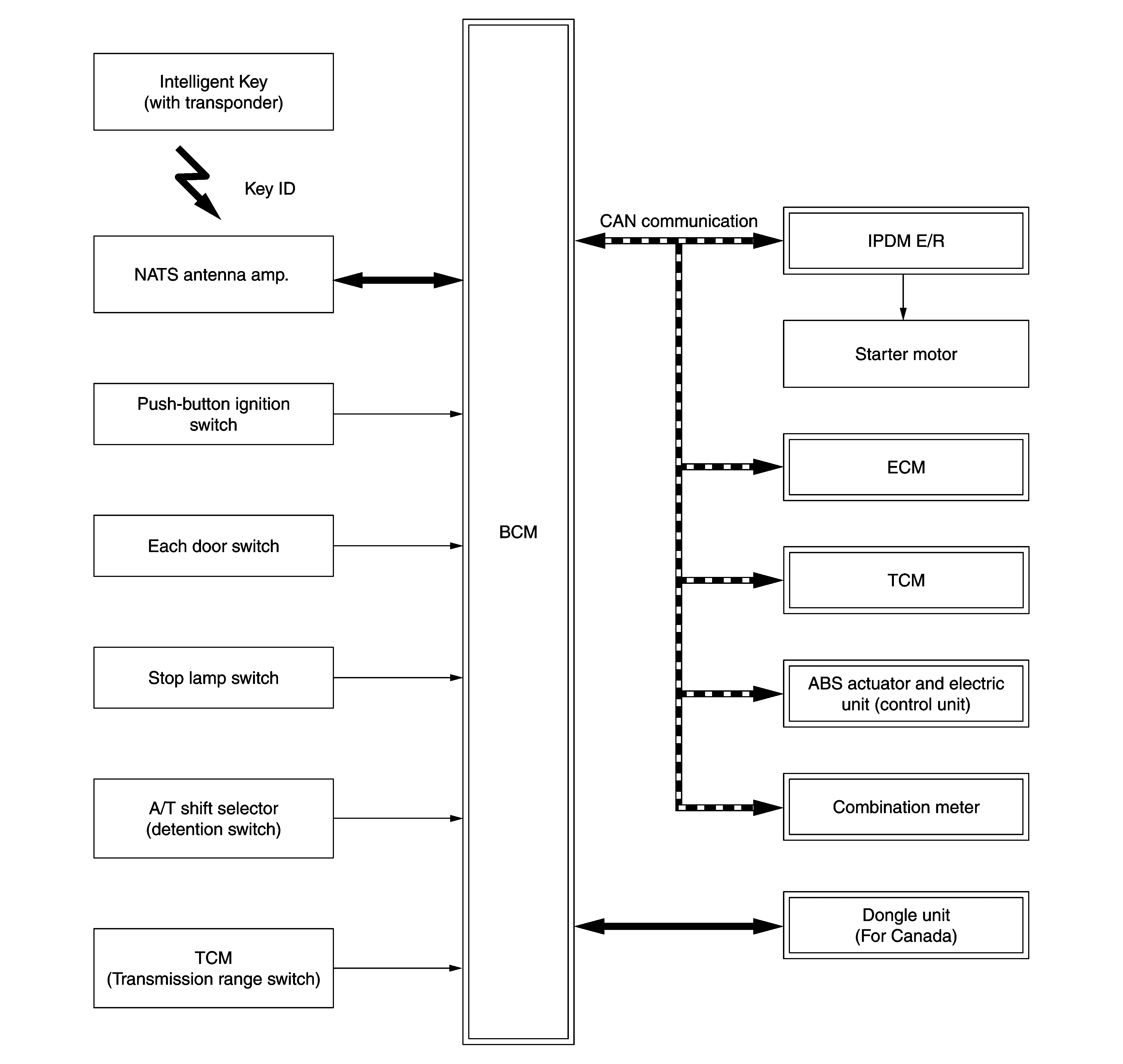

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
