Removal And Installation: Removal
CAUTION:
Before replacing ADAS control unit, perform "Read/Write Configuration" to save or print current vehicle specification. For details, refer to DESCRIPTION .
- Remove the luggage side lower finisher (LH). Refer to REMOVAL AND INSTALLATION .
- Disconnect ADAS control unit connector.
- Remove mounting bolts from ADAS control unit.

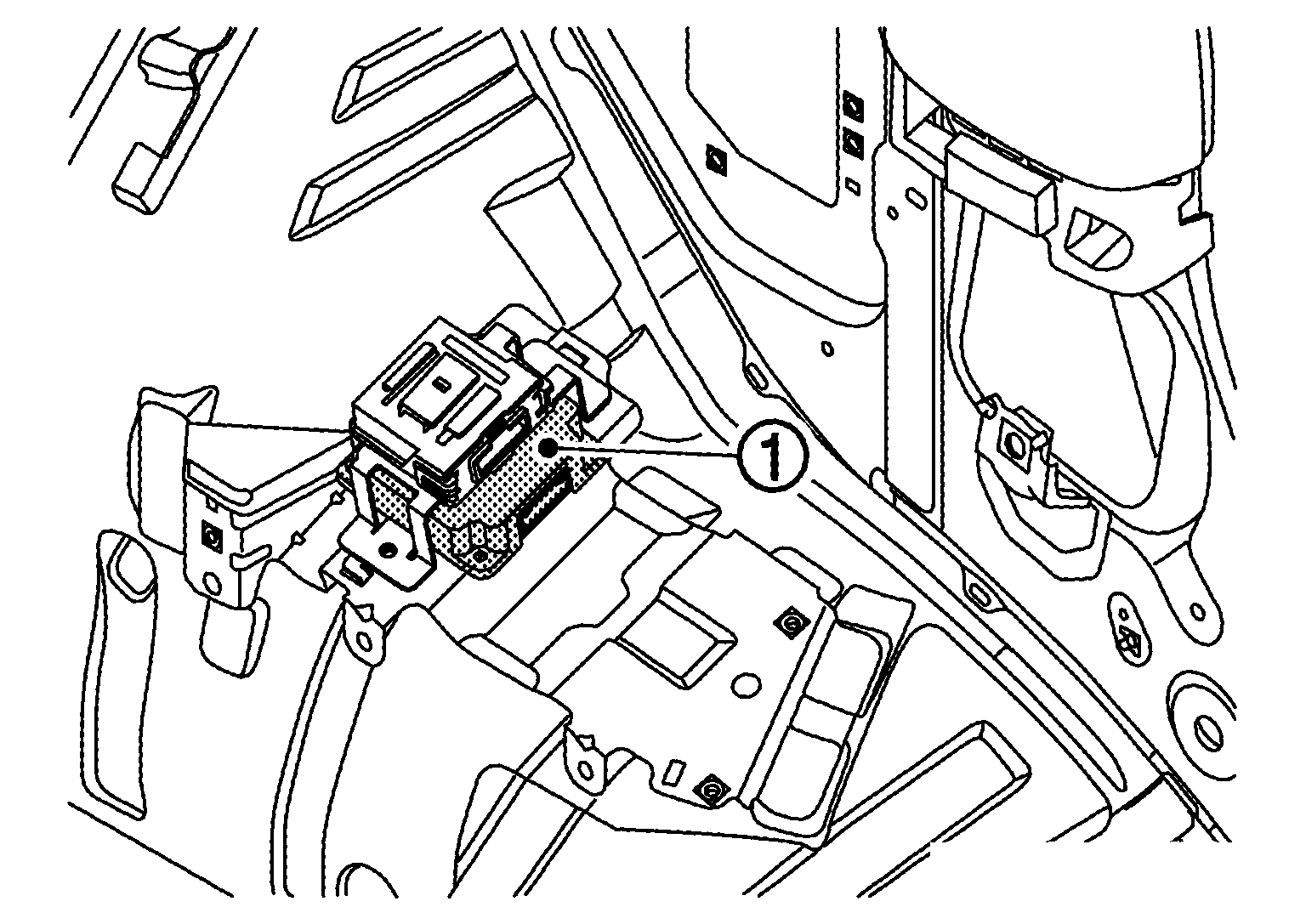

- Remove ADAS control unit
.
