Switch Name And Function

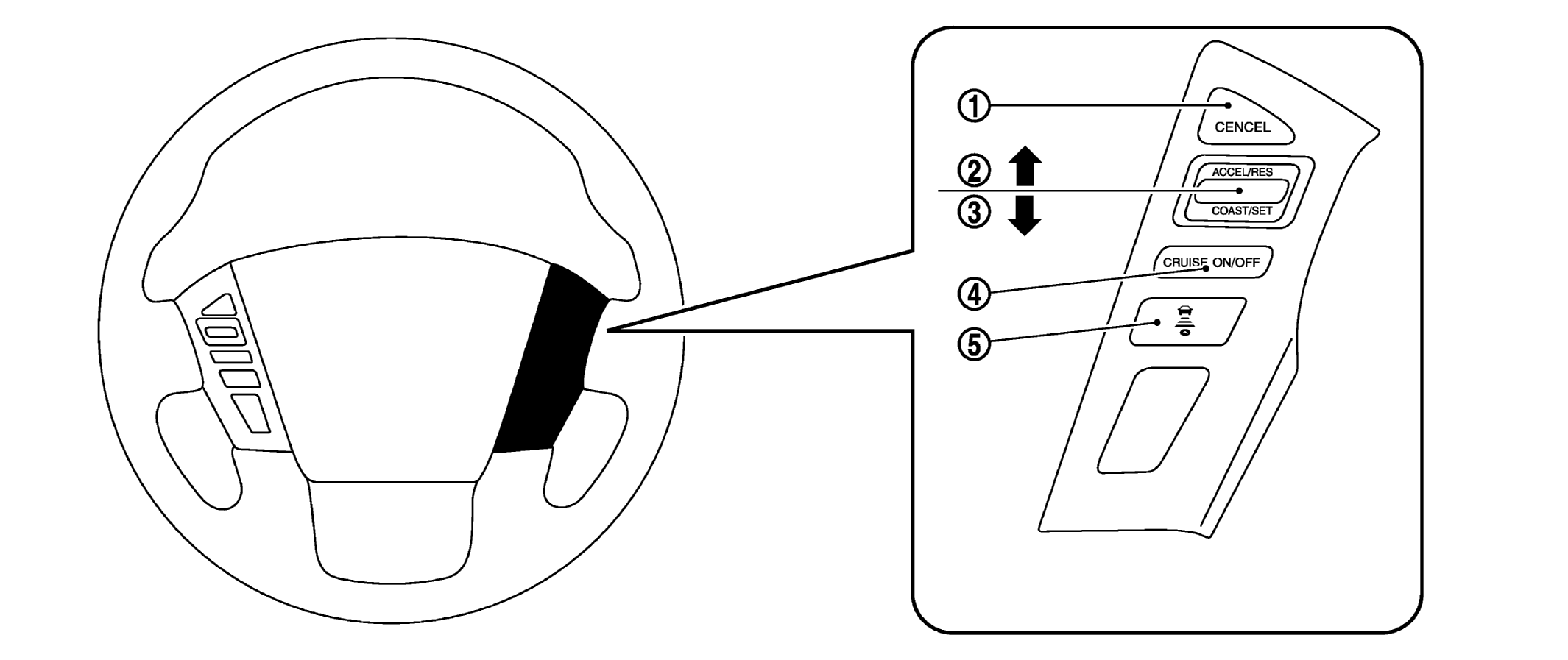

G07024203Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
WHITE-1 CANCEL switch Deactivates the system without erasing the set speed
WHITE-2 RESUME/ACCELERATE switch Resumes set speed or increases speed incrementally
  • Push and hold the switch to increase the set speed by 5 km/h (5 MPH)
  • Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
WHITE-3 SET/COAST switch Sets desired cruise speed or reduces speed incrementally
  • Push and hold the switch to decrease the set speed by 5 km/h (5 MPH)
  • Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH)
NOTE:

The minimum set speed is 32 km/h (20 MPH)
WHITE-4 MAIN switch Master switch to activate the system (Press for less than 1.5 seconds)
WHITE-5 DISTANCE switch Changes the following distance from: Long, Middle, Short
