Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

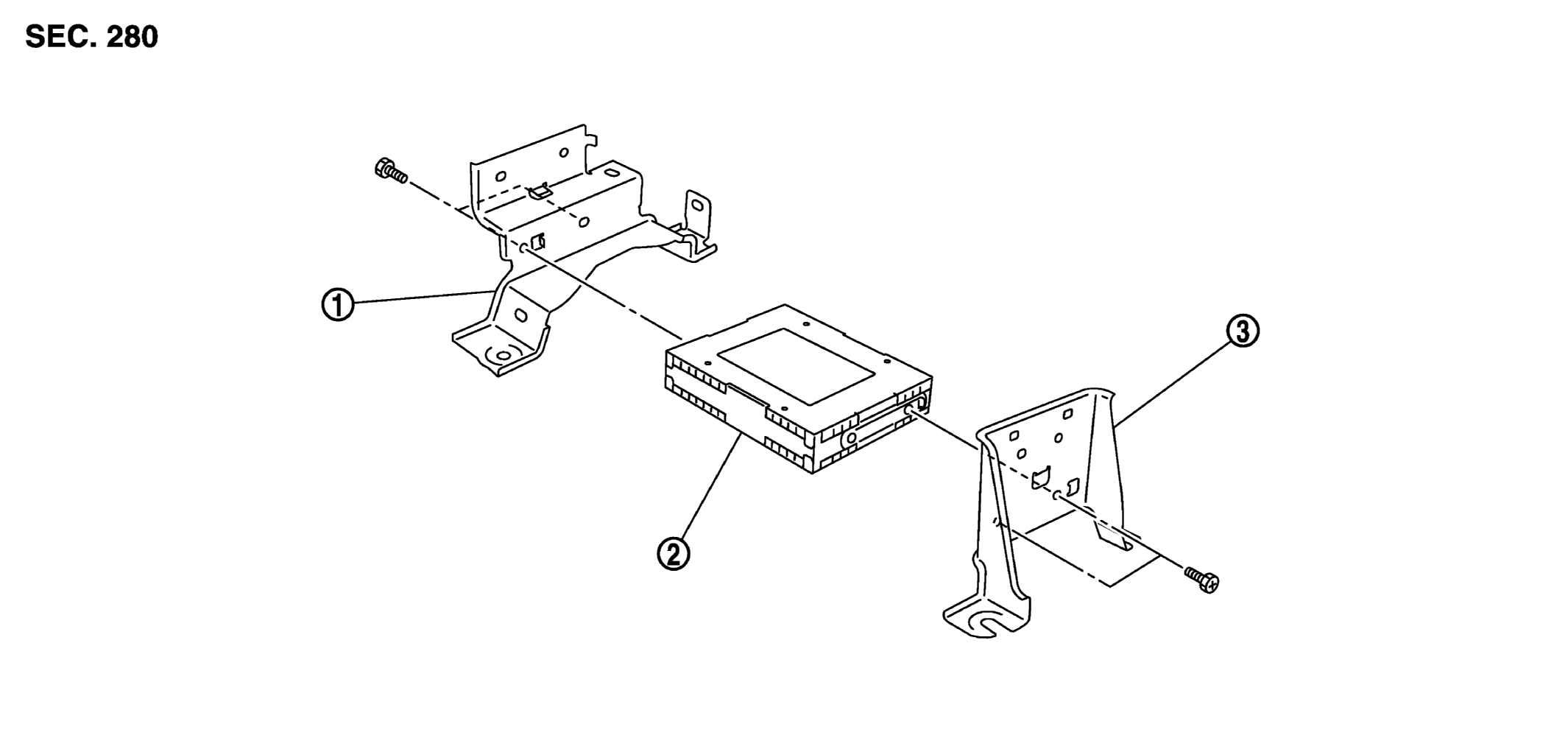

GNSJSNIA2509ZZ-509Courtesy of NISSAN NORTH AMERICA, INC.
1. Bracket (front) 2. Satellite radio tuner 3. Bracket (rear)
