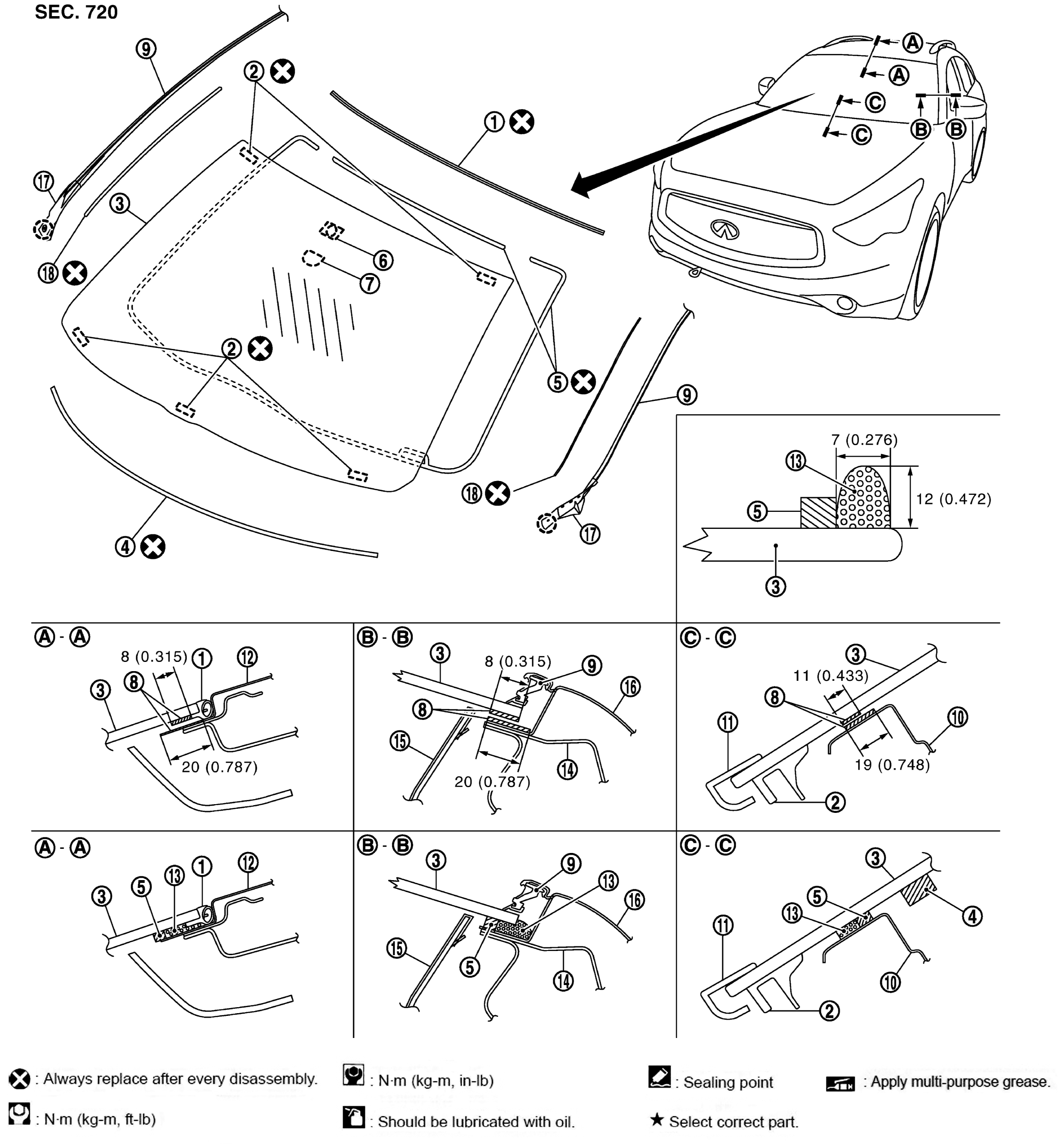

Exploded View With Torque Specifications
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Windshield Molding |
2. |
Clip |
3. |
Windshield Glass |
| 4. |
Insulator |
5. |
Dam Sealant Rubber (Upper, Lower) |
6. |
Rain Sensor Bracket |
| 7. |
Mirror Base |
8. |
Primer |
9. |
Roof Side Molding |
| 10. |
Dash Upper Cross Member |
11. |
Cowl Top Cover |
12. |
Roof Panel |
| 13. |
Adhesive |
14. |
Front Pillar Outer Upper |
15. |
Front Pillar Garnish |
| 16. |
Body Side Outer |
17. |
Front Fender Cover |
18. |
Roof Side Molding Fastener |
 |
: Clip |
|
|
|
|
| Unit |
: mm (in) |
 |
: Always replace after every disassembly. |
