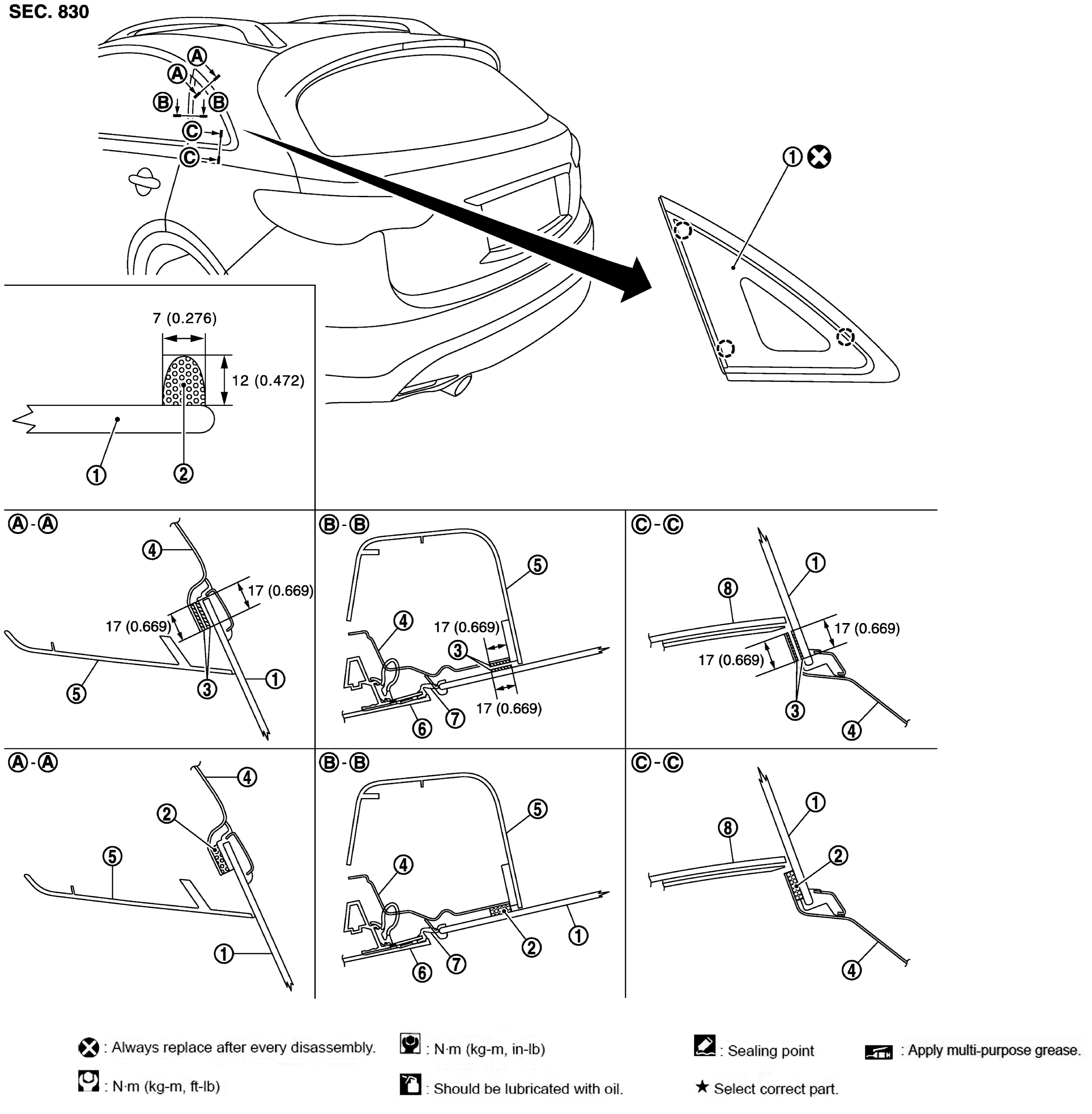

Exploded View With Torque Specifications
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Side Window Glass |
2. |
Adhesive |
3. |
Primer |
| 4. |
Body Side Outer Panel |
5. |
Rear Pillar Base |
6. |
Rear Door Sash Cover |
| 7. |
Rear Door Weather-Strip |
8. |
Luggage Finisher Upper Base |
|
|
 |
: Clip |
|
|
|
|
| Unit |
: mm (in) |
 |
: Always replace after every disassembly. |
