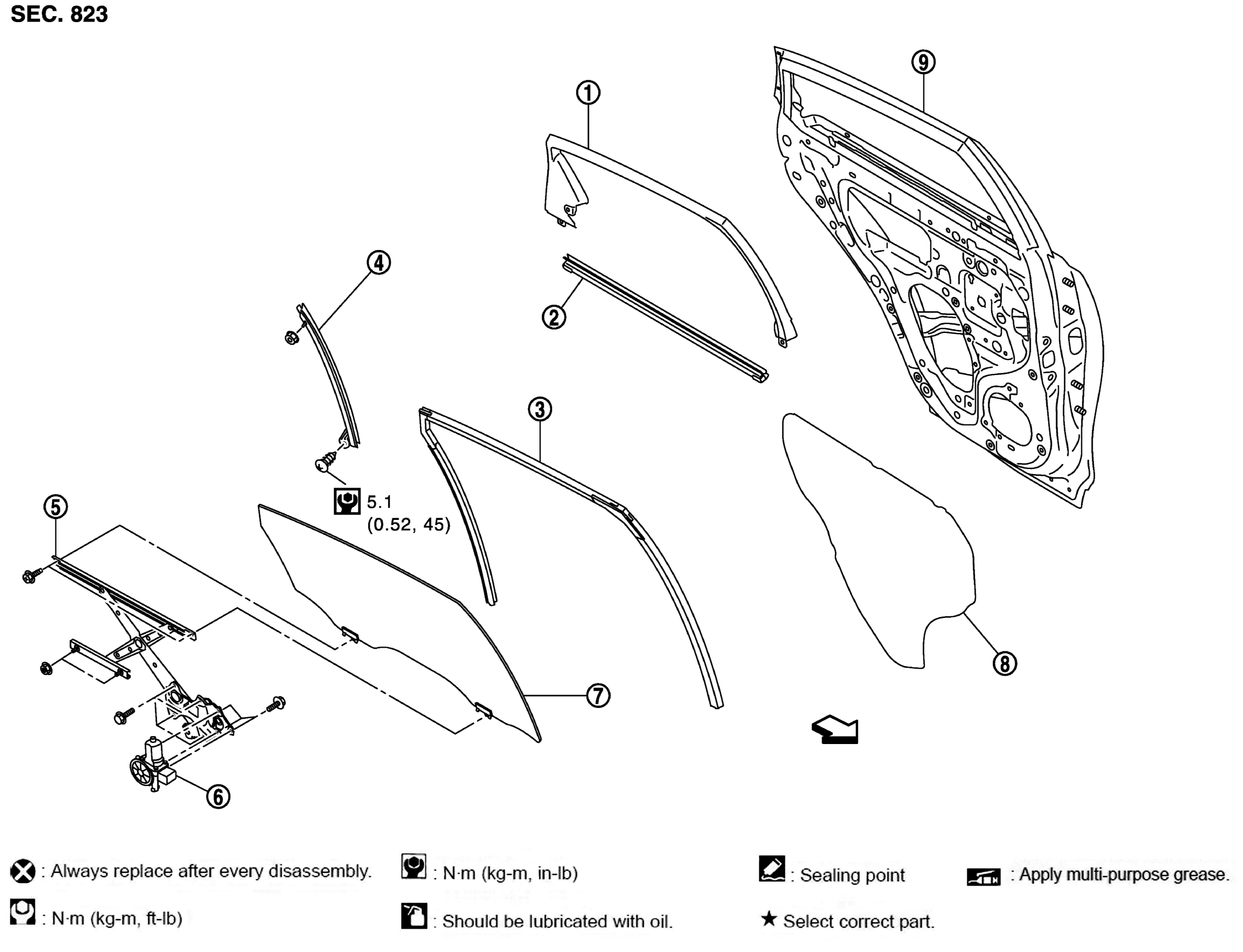

Exploded View With Torque Specifications
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Rear Door Sash Inner Cover |
2. |
Rear Door Inside Seal |
3. |
Rear Door Glass Run |
| 4. |
Rear Door Lower Sash |
5. |
Regulator Assembly |
6. |
Power Window Motor |
| 7. |
Rear Door Glass |
8. |
Sealing Screen |
9. |
Rear Door Panel |
 |
: Vehicle front |
 |
: N•m (kg - m, in - lb) |
