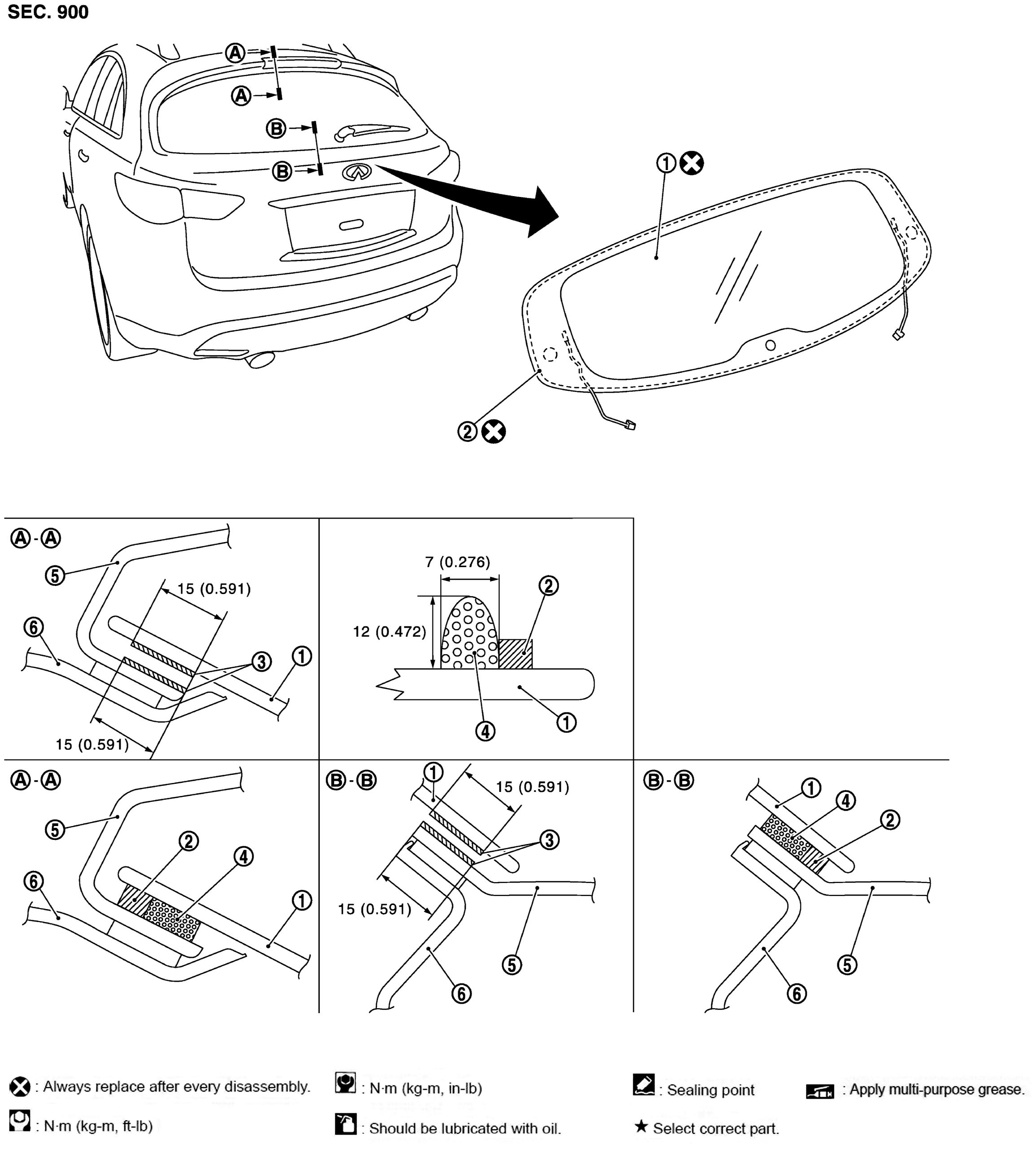

Exploded View With Torque Specifications
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Back Door Window Glass |
2. |
Dam Sealant Rubber |
3. |
Primer |
| 4. |
Adhesive |
5. |
Back Door Outer |
6. |
Back Door Inner |
 |
: Clip |
| Unit |
: mm (in) |
 |
: Always replace after every disassembly. |
