Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
System Description
>>
System
>>
Multi Av System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

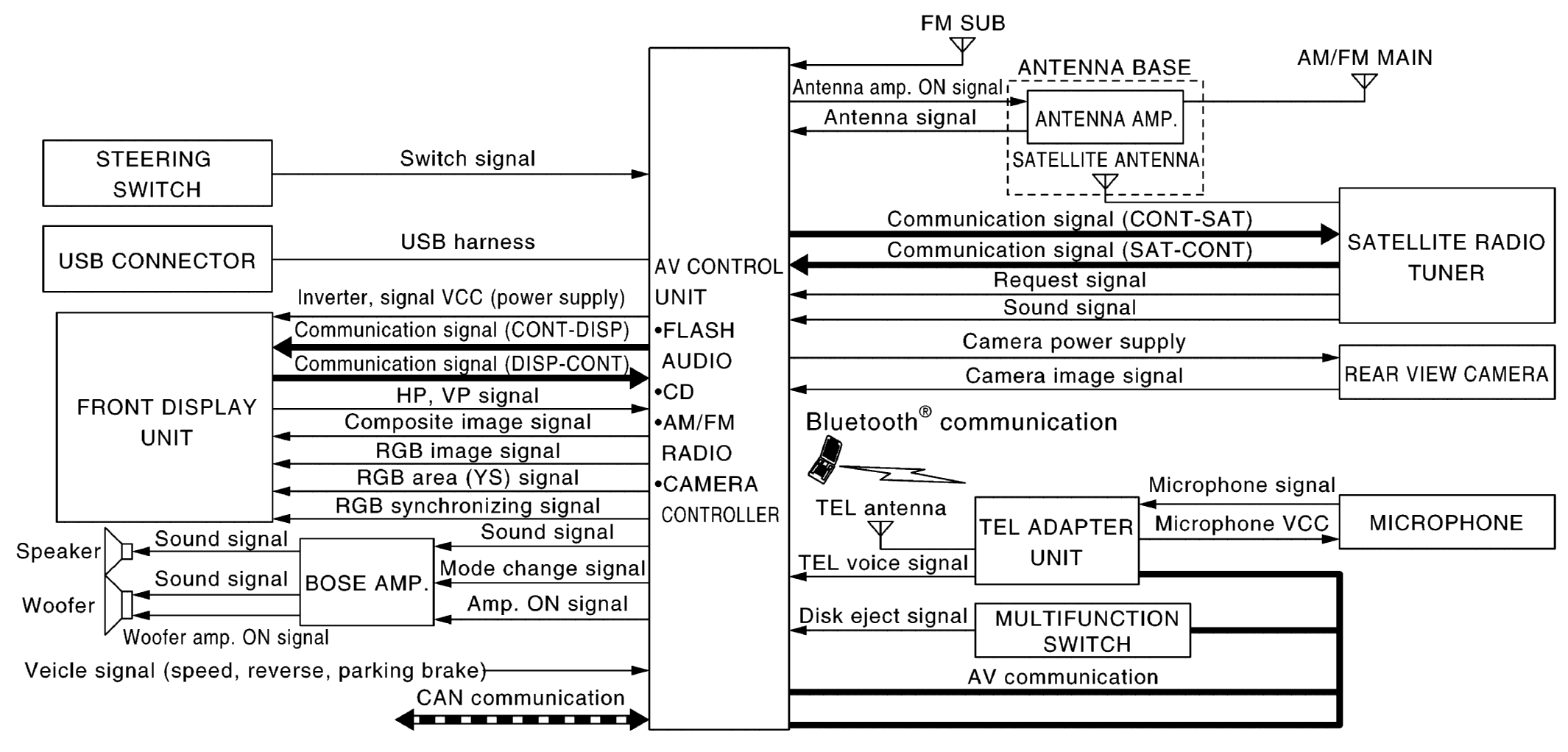

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
An antenna base integrated with radio antenna and satellite radio antenna is adopted.
Courtesy of NISSAN NORTH AMERICA, INC.
