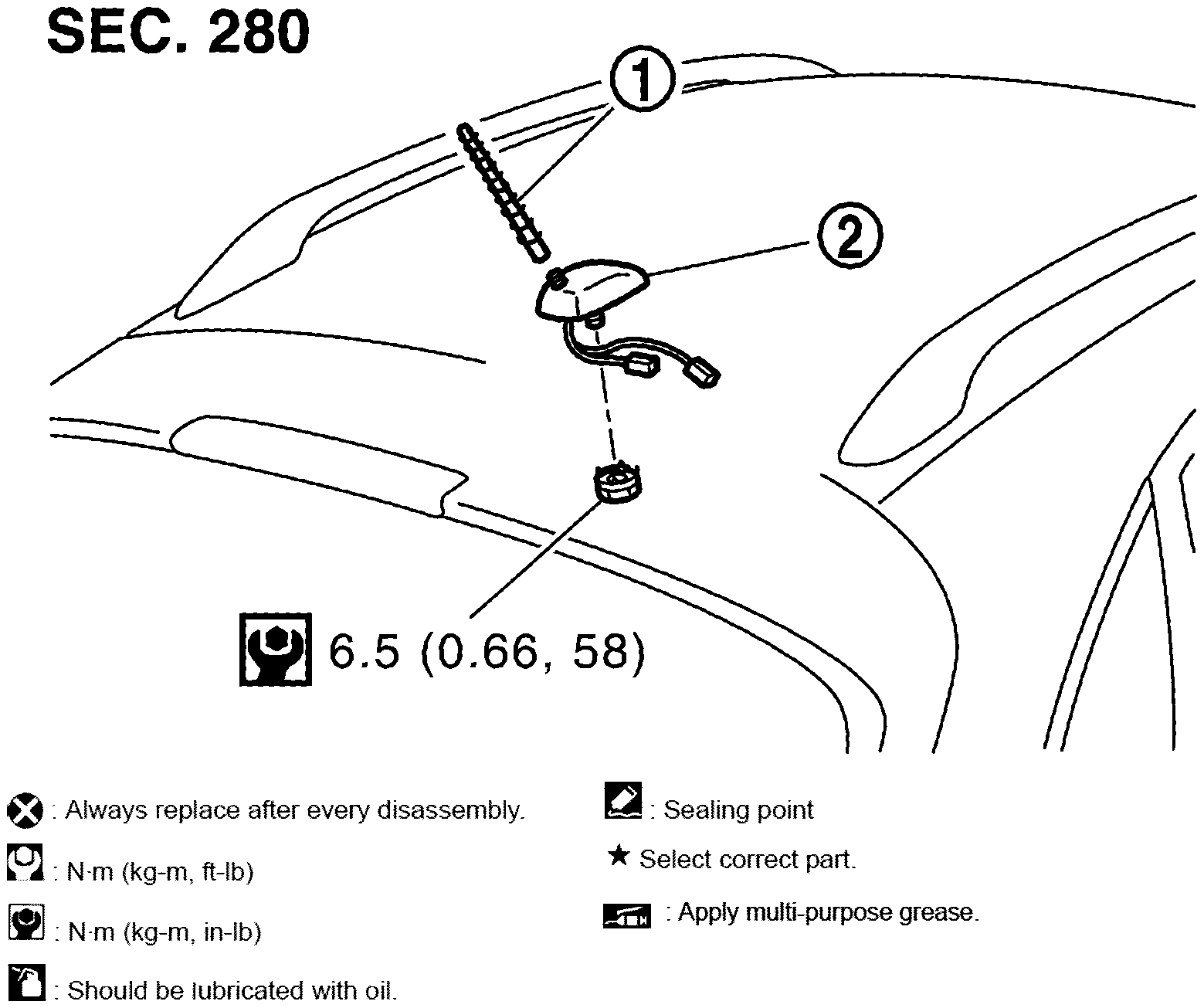

Exploded View With Torque Specifications

GNSJSNIA1463ZZ-463Courtesy of NISSAN NORTH AMERICA, INC.
1. Antenna rod
2. Antenna base
Refer to COMPONENTS for symbols in the figure.
