Exploded View

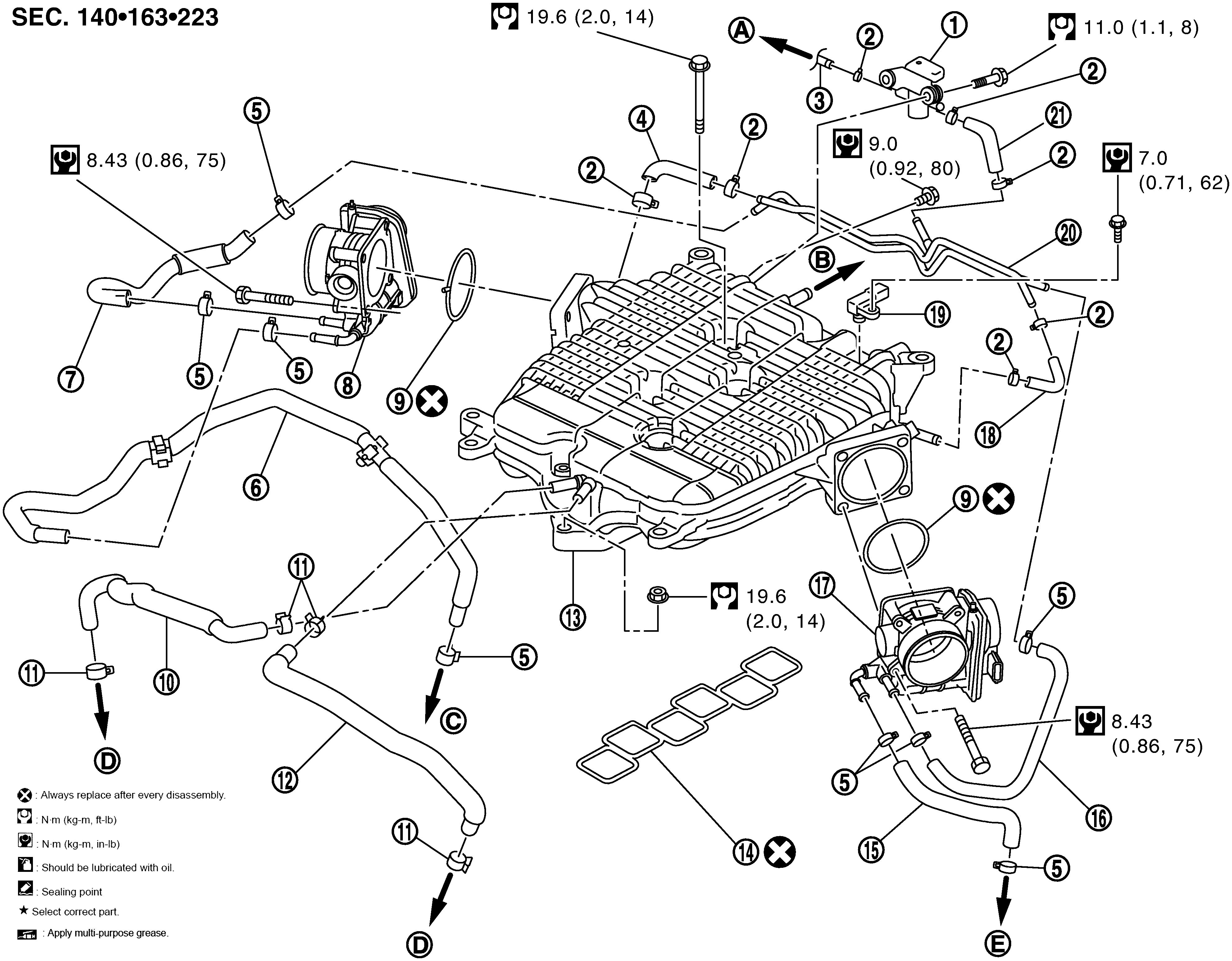

Fig 1: Intake Manifold Collector With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister purge control solenoid valve	2.	Clamp	3.	EVAP hose
4.	EVAP hose	5.	Clamp	6.	Water hose
7.	Water hose	8.	Electric throttle control actuator (bank 1)	9.	Gasket
10.	PCV hose	11.	Clamp	12.	PCV hose
13.	Intake manifold collector	14.	Gasket	15.	Water hose
16.	Water hose	17.	Electric throttle control actuator (bank 2)	18.	EVAP hose
19.	Manifold absolute Pressure (MAP) sensor	20.	EVAP tube assembly	21.	EVAP hose
A.	To vacuum pipe	B.	To brake booster	C.	To water outlet (rear)
D.	To PCV valve	E.	To heater pipe
Refer to COMPONENTS for symbols in the illustration.
