Exploded View: Removal

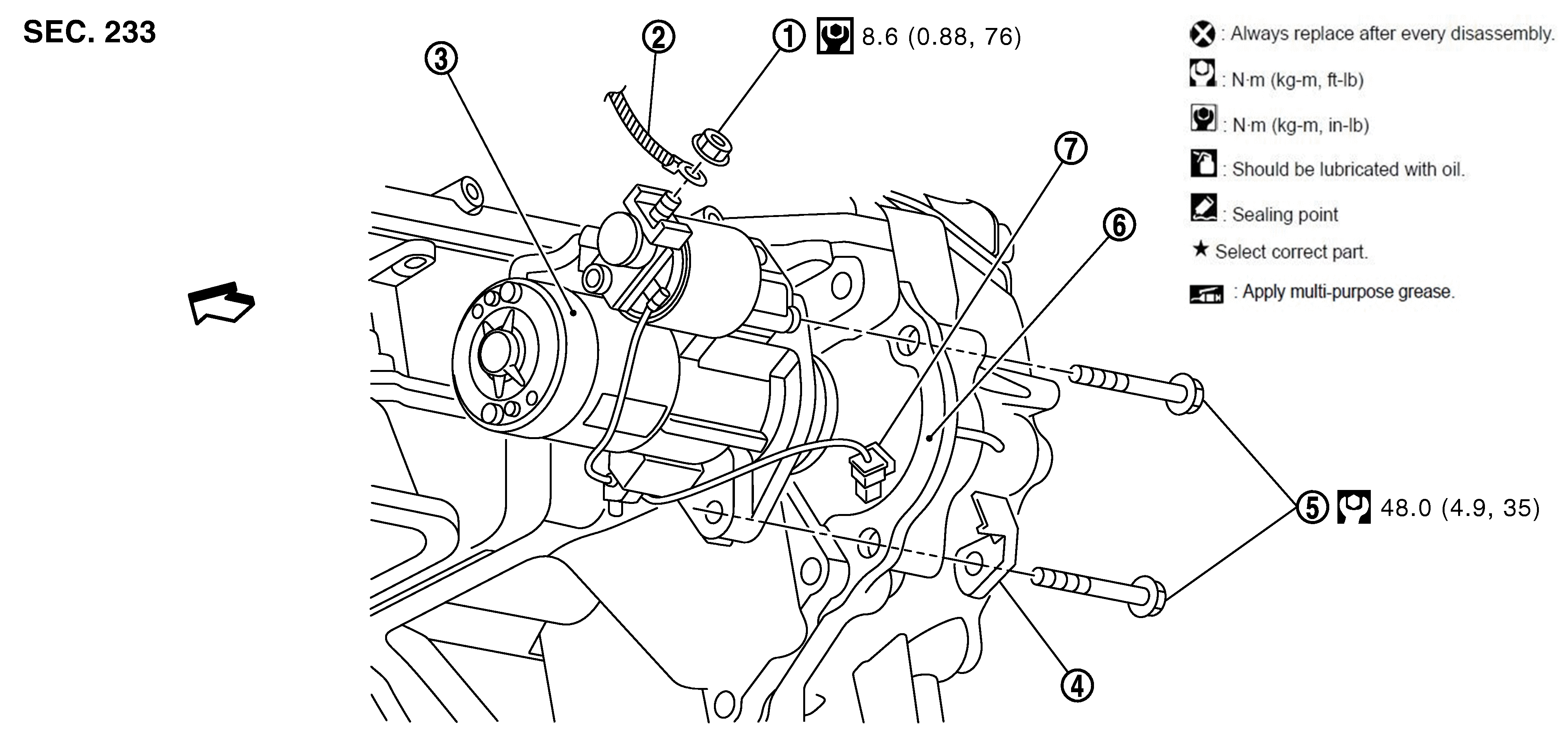

Fig 1: Starter Motor With Torque Specifications

GNSJPBIA0147GB-147

Courtesy of NISSAN NORTH AMERICA, INC.

1.	"B" terminal nut	2.	"B" terminal harness	3.	Starter motor
4.	Harness clip bracket	5.	Starter motor mounting bolt	6.	Converter housing
7.	"S" connector
	: Engine front
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
