Removal And Installation: Assembly

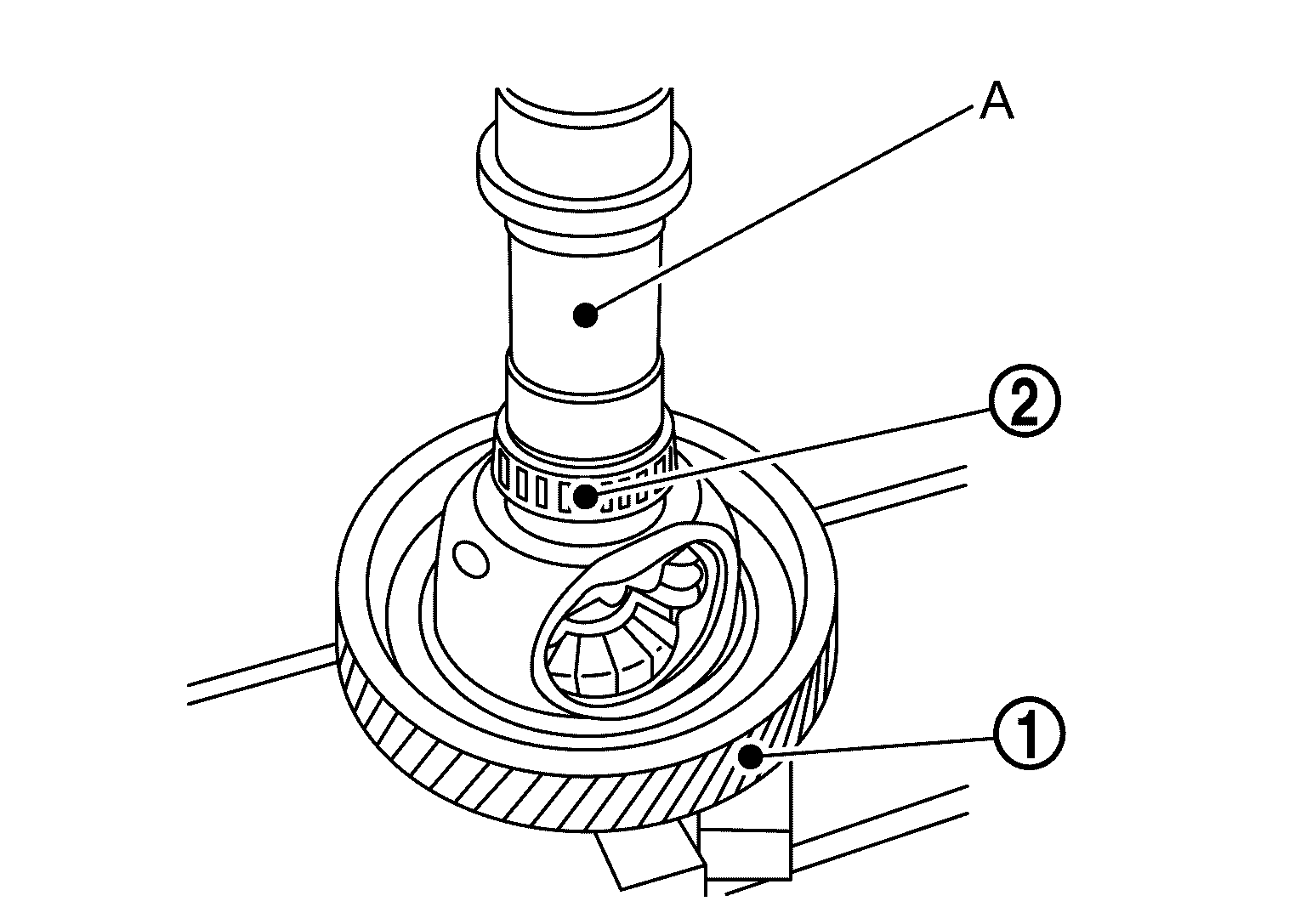

Press inner race of each differential side bearing WHITE-2 to final drive assembly WHITE-1 all the way to the end, using the sleeve (A) [SST: KV315H0350 (TechMate No. -) (DAIMLER tool No. 203 589 00 14 00)].

GNSJSDIA8869ZZ-869Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

Check the appearance for abnormality and damage, and check that the rotating part rotates smoothly. Replace if any malfunction is found.
