WIRE TO WIRE Connector End View (F524)

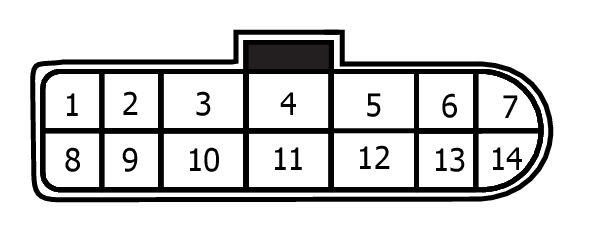

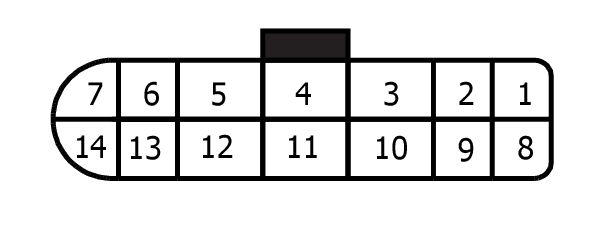

Connector Types:
MB_A0555452928
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G |
- |
| 2 |
GR |
- |
| 3 |
O |
- |
| 4 |
V |
- |
| 7 |
B |
- |
| 8 |
V |
- |
| 9 |
Y |
- |
| 10 |
R |
- |
| 11 |
G |
- |
| 12 |
BR |
- |
| 14 |
W |
- |
