Exploded View

WARNING: This page is about a different variant/trim than selected.

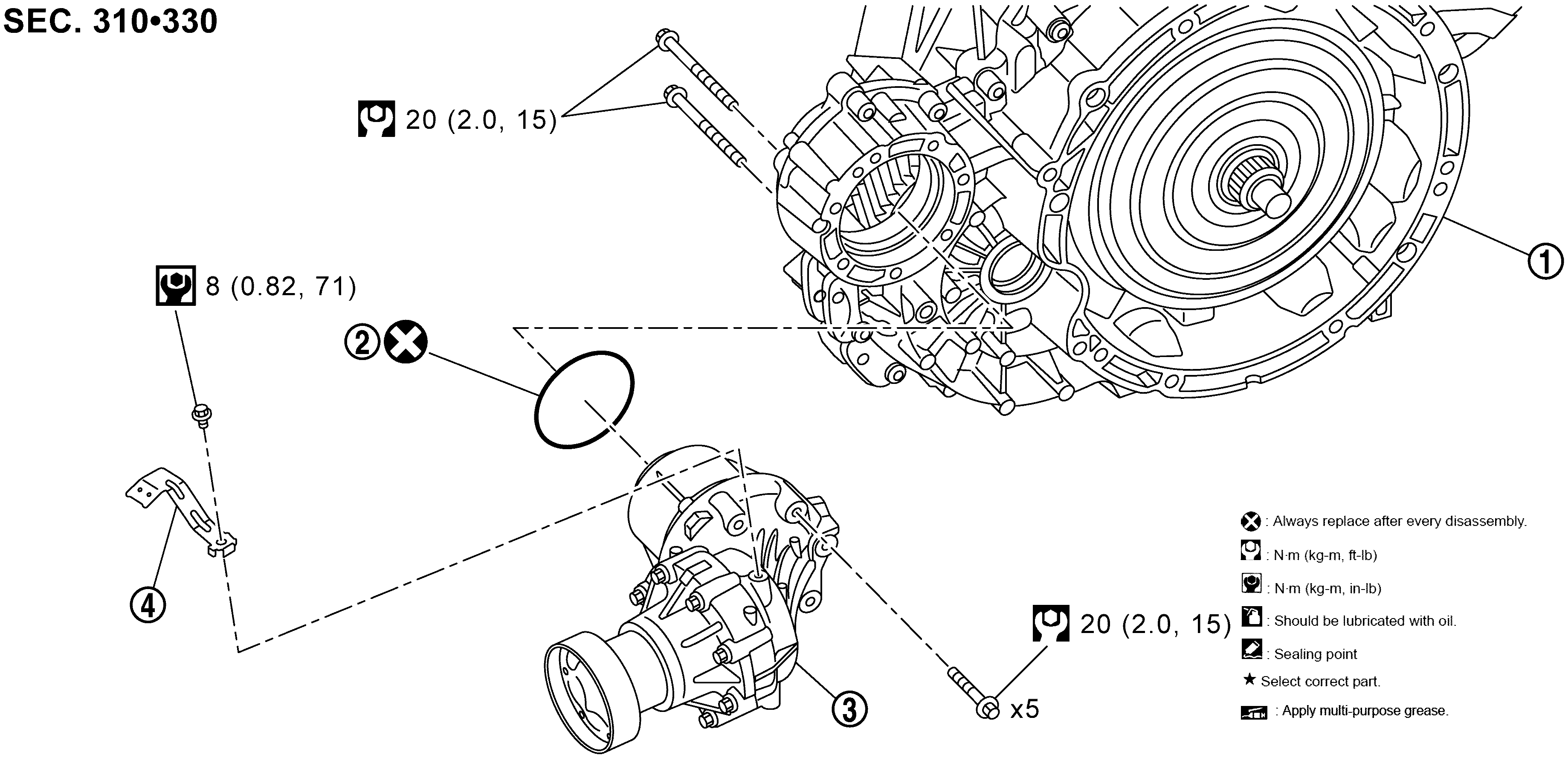

Fig 1: Transfer Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Transaxle assembly	O-ring	Transfer assembly
	Harness bracket*
: N•m (kg-m, in-lb)
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
*: Not applicable
