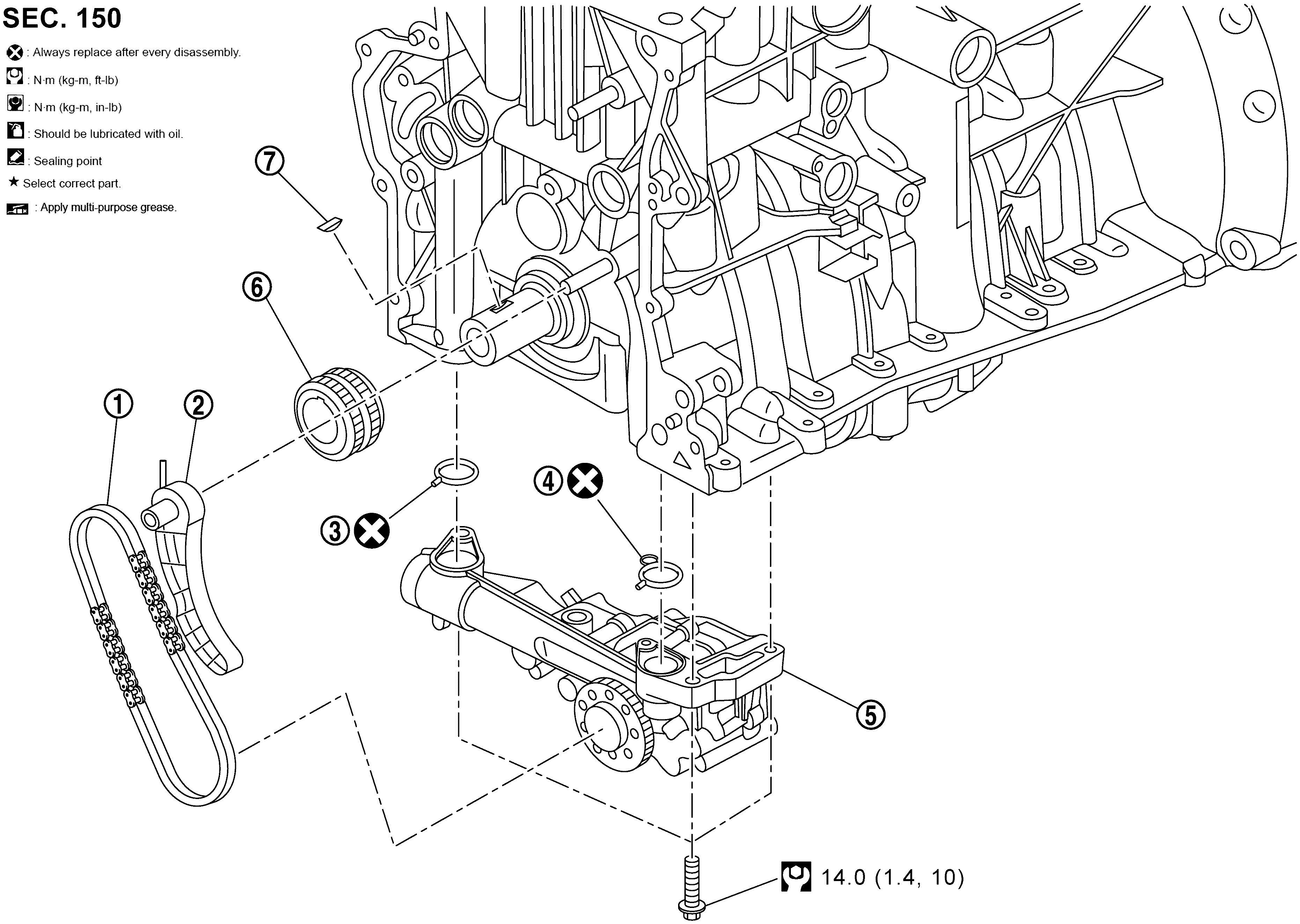

Exploded View: Removal
Courtesy of NISSAN NORTH AMERICA, INC.
 |
Timing chain (oil pump) |
 |
Timing chain guide |
 |
O-ring |
 |
O-ring |
 |
Engine oil pump |
 |
Crankshaft sprocket |
 |
Key |
|
|
|
|
 |
: Always replace after every disassembly. |
 |
: N•m (kg - m, ft - lb) |
|
|
|
|
