Component Location

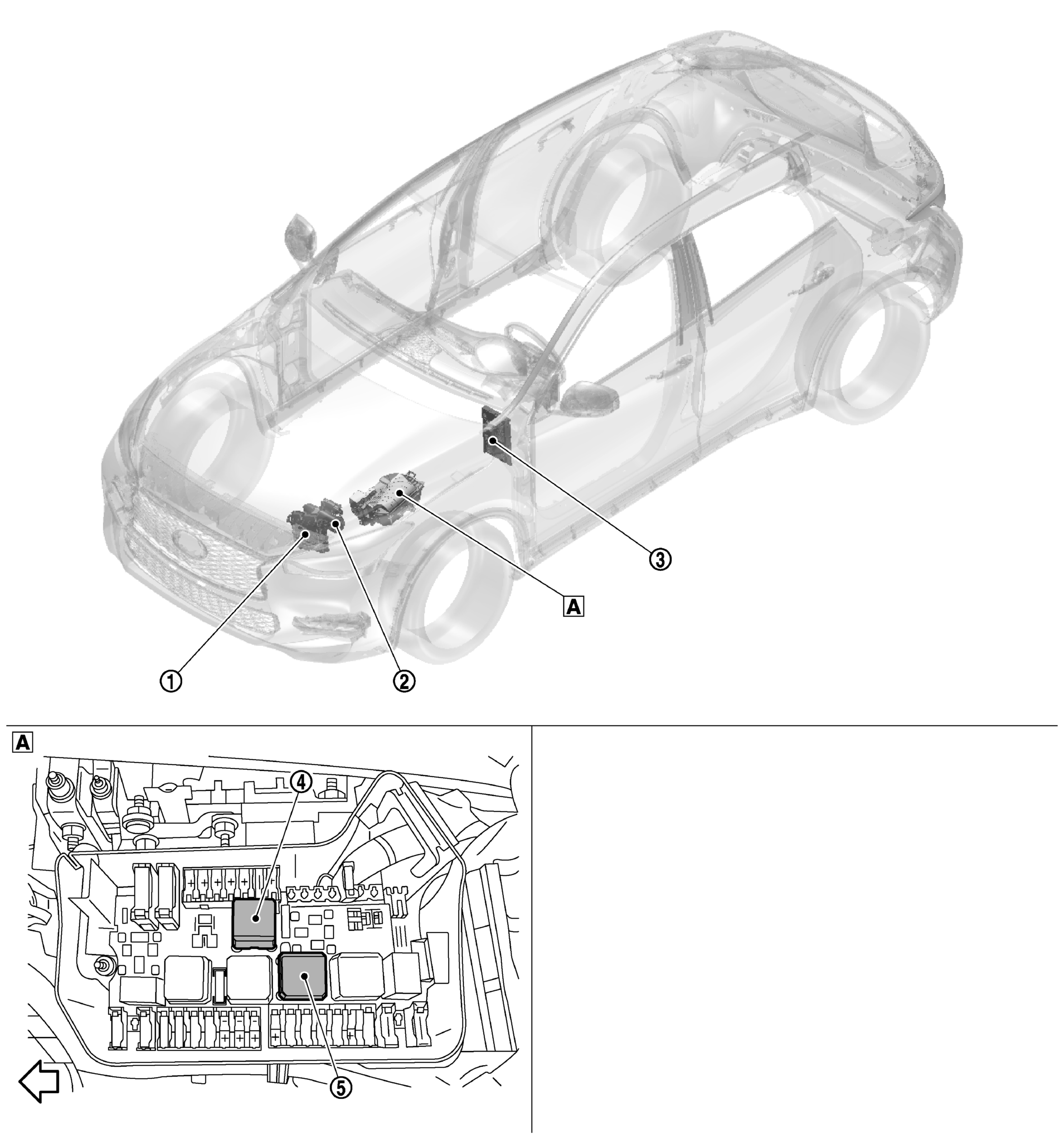

GNSJMBIA4710ZZ-710Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Fuse and fusible link block 1
No. Component Function
WHITE-1 ECM ECM controls starter relay.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-2 Starter motor Refer to STARTER MOTOR .
WHITE-3 BCM BCM controls injection relay.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-4 Injection relay Injection relay is turned ON by BCM when ignition switch is ON or START.
WHITE-5 Starter relay Starter relay is turned ON by ECM when starter operating condition is satisfied.
