Disassembly And Assembly Of Center Console Assembly: Disassembly

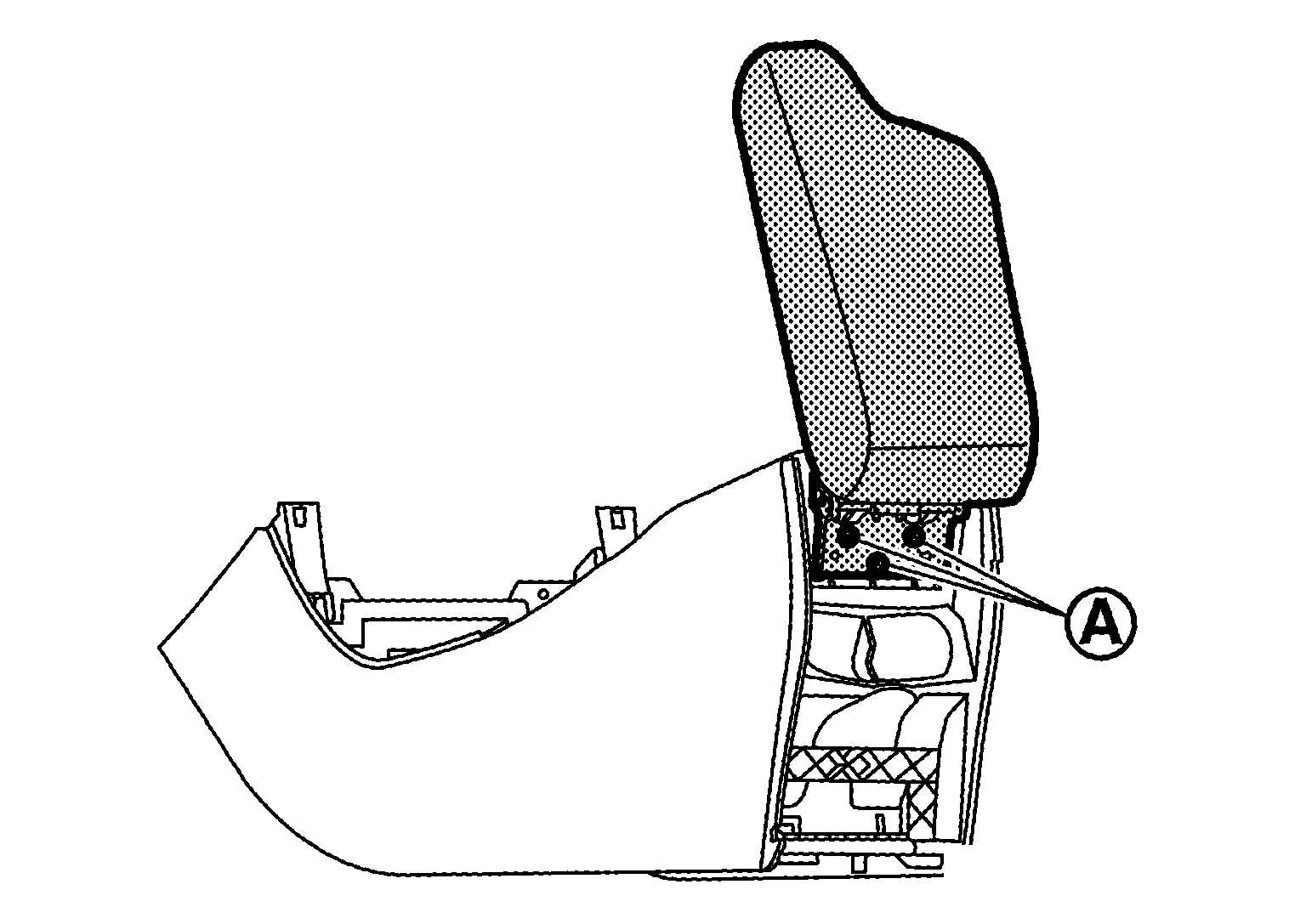

  1. Remove center console lid fixing screws MARU-A-W . and then remove center console lid.
    GNSJMJIB1567ZZ-567Courtesy of NISSAN NORTH AMERICA, INC.
