Exploded View

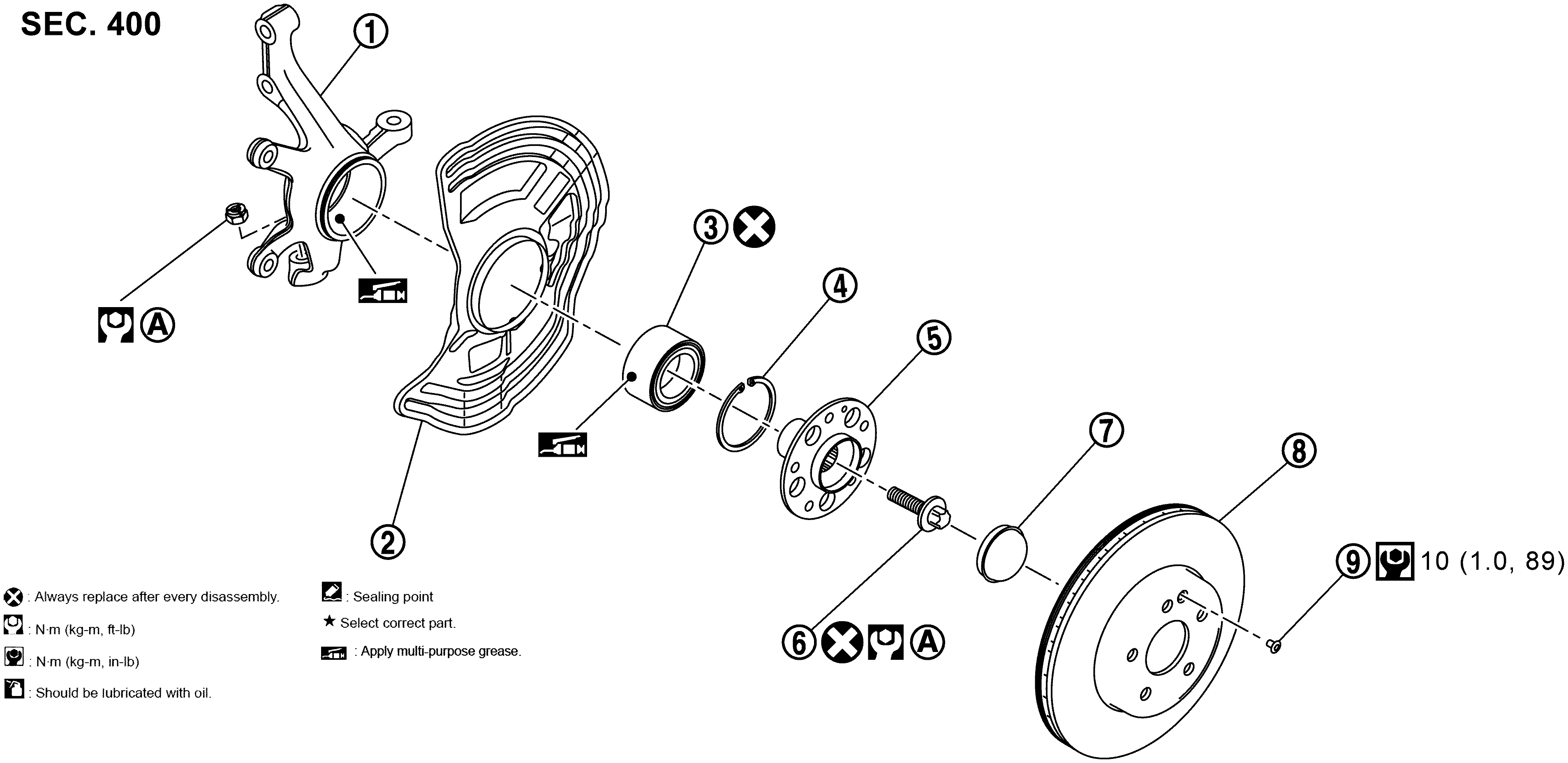

Fig 1: Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering knuckle	Splash guard	Wheel bearing
	Snap ring	Wheel hub	Wheel hub lock bolt
	Center cap	Disc rotor	Lock bolt
	Tightening must be done following the installation procedure. Refer to REMOVAL AND INSTALLATION .
	: Fill NISSAN Genuine grease or equivalent.
: N•m (kg - m, in - lb)
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
