Right Side

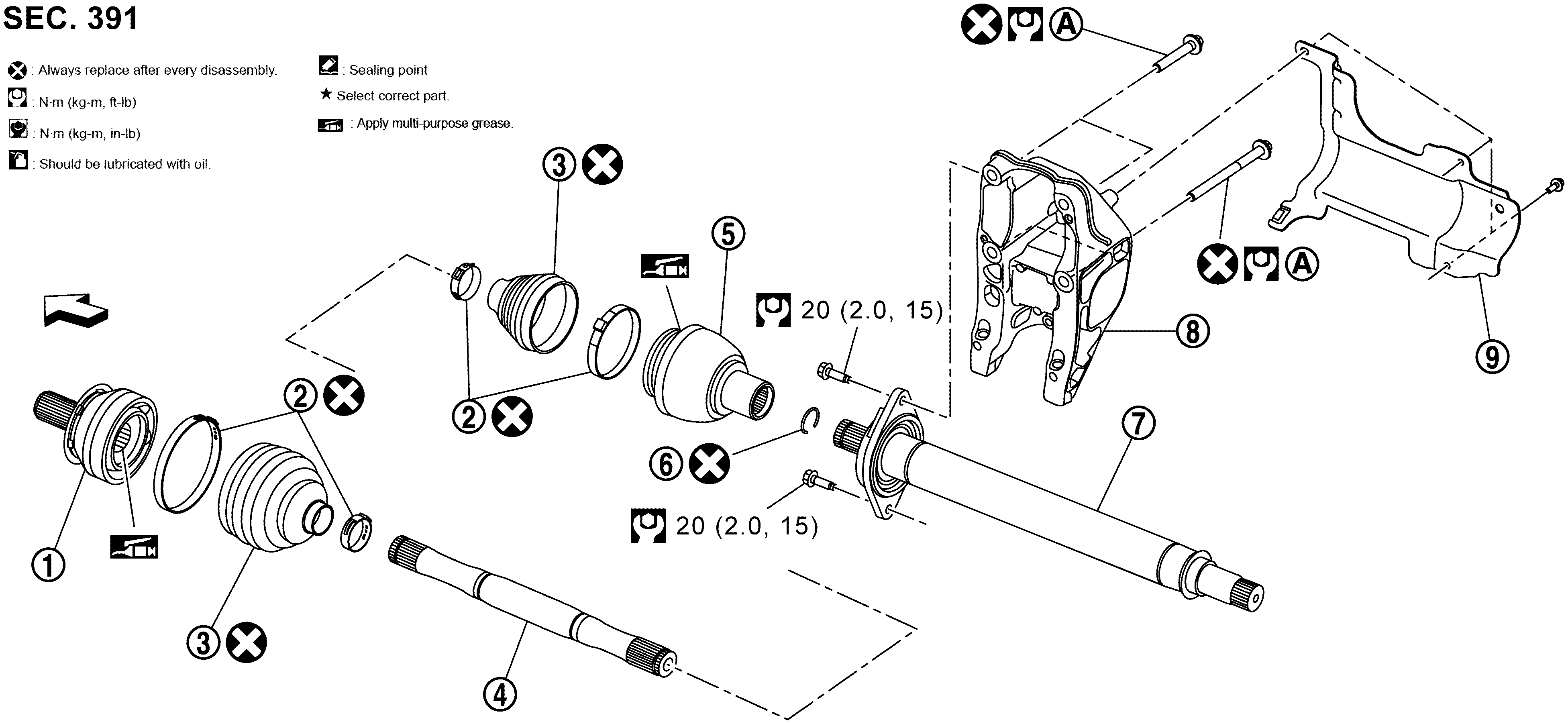

Fig 1: Front Drive Shaft RH With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Joint sub-assembly	Boot band	Boot
	Shaft	Housing assembly	Circular clip
	Support shaft assembly	Support bearing bracket	Heat insulator
: Tightening must be done following the installation procedure. Refer to REMOVAL AND INSTALLATION .
	: Wheel side
	Fill NISSAN Genuine grease or equivalent.
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
